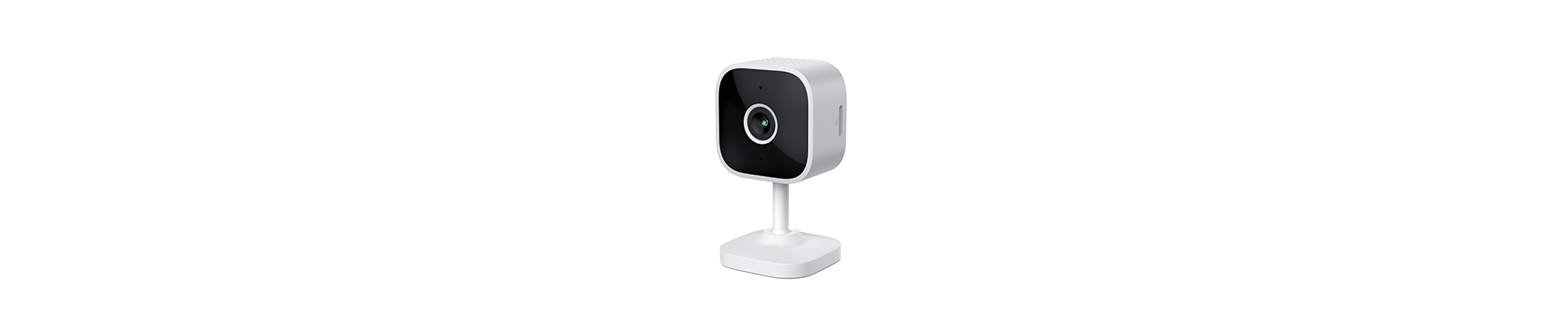

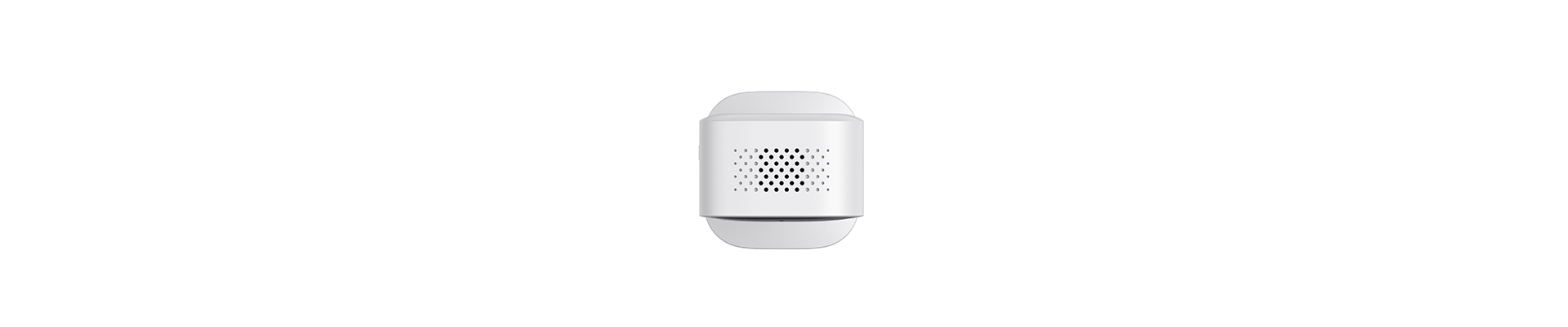

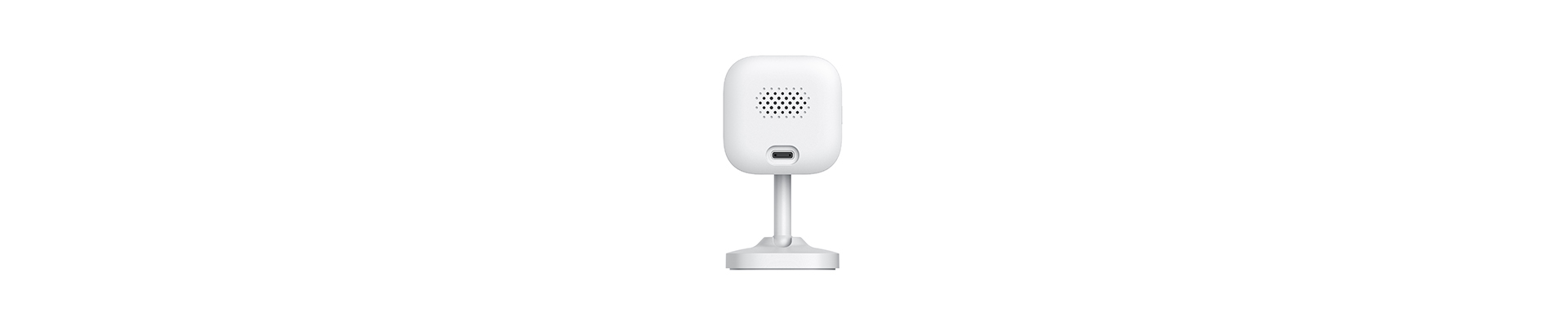

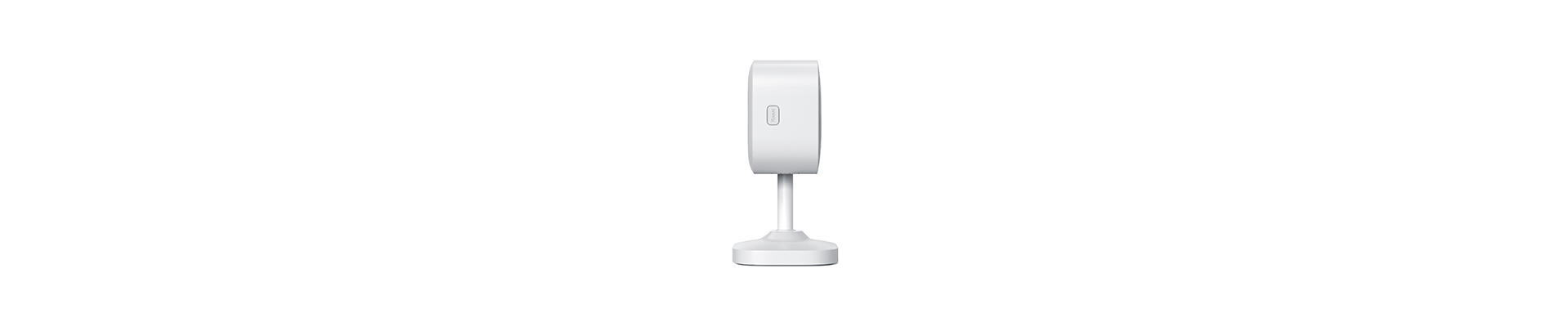

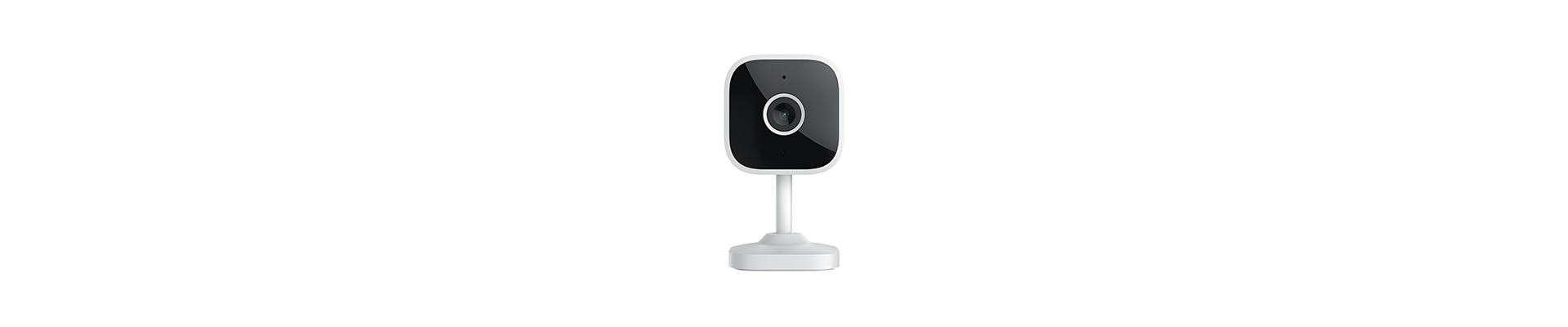

Product Overview:

1: 3MP video pixels 1/3-inch CMOS

2: Full HD 2304*1296 resolution;

3: HD lens 3.8mm fixed;

4: IR-CUT automatic switching to achieve day and night monitoring;

5: 6pcs 850mm IR LEDs,support IR night vision,IR distance: 8-10M;

6: Support digital WDR and 3D noise reduction functions;

7: H.265 video compression technology, high image quality, low bit rate;

8: Support mobile phone remote monitoring (iOS, Android);

9: Supporting cloud services and third-party value-added services, optional (Alexa, Google);

10: Support 2.4G WIFI pair and Bluetooth fast pair;

11: Support motion detectionsound detectionhuman body detection and so on;



Parameters

Specifications

CMOS

CMOS size

1/3-inch CMOS

Video

Effective Pixels

2304*1296(3MP)

Compression standard

H.265

Frame rate

Fixed 20fps

Stream bit rate

Changeable 32Kbps-1.5Mbps

Resolution

HD(Mainstream):2304*1296

SD(Sub-stream): 640*360

Video format

MP4

Audio

Bit rate

8kbps

Audio format

G711A

Lens

Focal length

3.8mm±5%

Relative pore size

F2.0±5%

Interface type

M12*0.5

FOV

D:116.4° H:95.1° V:50.8°

Resolution

3MP

Number of lens layers

1G3P

Night vision

IR Distance

8-10 m

Photosensitive method

SENSOR metering

IR-CUT

YES

IR Light

6pcs 850nm IR LEDs

White light

N/A

WIFI

Standard

IEEE 802.11 b/g/n

Distance

30-40m(No barriers)

Bluetooth

Bluetooth

Support

Speaker

Speaker function

Support Impedance 8Ω

Microphone

Sensitivity

-36dB ± 2dB

Signal-to-noise ratio

58dB

Storage

Cloud storage

Support

Storage

Supports TF cards, up to 256GGB

Interface

Reset button

Support

Power interface

Type-C 5V/1A

Wired network interface

Support

Power adapter

Output voltage

DC 5V/1A

Connector

USB 5V/1A


Certifications

CEROHSFCC

Working environment

Operating Temperature

-10 -  50

Storage temperature

-20 -  60

Operating humidity

Less than 95% (non-condensing)

Installation mode and accessories

Installation

Wall mounted with bracket

Packing list

Camera x 1 Instruction manual x 1 Power adapter x1 Installation kit x 1 Upper wall support x 1

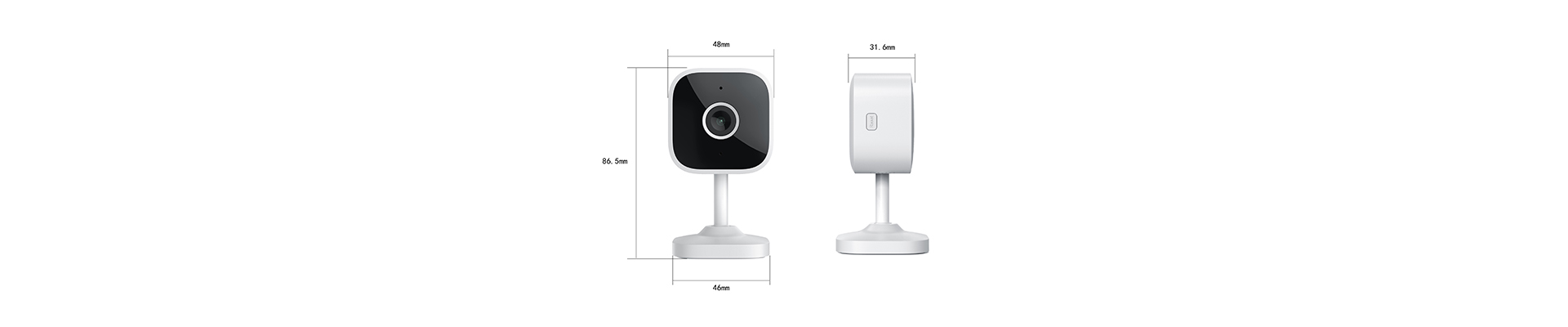

Size

Length*Width*Height

46*31.6*86.5mm

Weight

Net weight

62g


There is noise in one-way and two-way intercoms?

1. There is audio input/output signal interference near the microphone/speaker. 2. There is a problem with the microphone/speaker hardware, please contact the manufacturer for resolution.

One-way and two-way intercom delay?

Detect whether there is delay/stuck in the network, such as PTZ rotation, real-time video, and video playback.

The camera has halos, strobes, etc?

1. The equipment testing environment has lights pointing directly at the camera. 2. Light refracts to the camera causing halo.

The camera is blurry?

1. If the camera fogs up, you can place the camera in a place with direct sunlight to evaporate the fog (Note: Do not point the camera lens directly at the sun) 2. The camera heats up severely during operation, which affects imaging components such as CMOS and causes blur. 3. When the light is too dark or too bright, HDR or WDR is not turned on.

The camera screen turns purple with many white spots?

1. The brightness of the environment where the camera is located is low, and the IR-CUT switch is activated but the color light mode is not switched normally, causing the picture to appear purple. 2. The effect of light refraction, you can adjust the picture to see if it is effective.

Due to an abnormal power outage during the remote OTA upgrade, the device cannot operate normally after repowering?

You can put the upgrade program into the TF card for local upgrade. The upgrade process: 1. A TF card with the file format of FAT32 → 2. Put the upgrade program into the source path of the upgraded TF card (not under the folder) → 3. Power off the device, put in the upgrade TF card and then power it on again → 4. The device will be upgraded successfully and restart in about 2 minutes. After restarting, power off and remove the upgrade TF card → 5. Power on and test whether the device is working normally.
