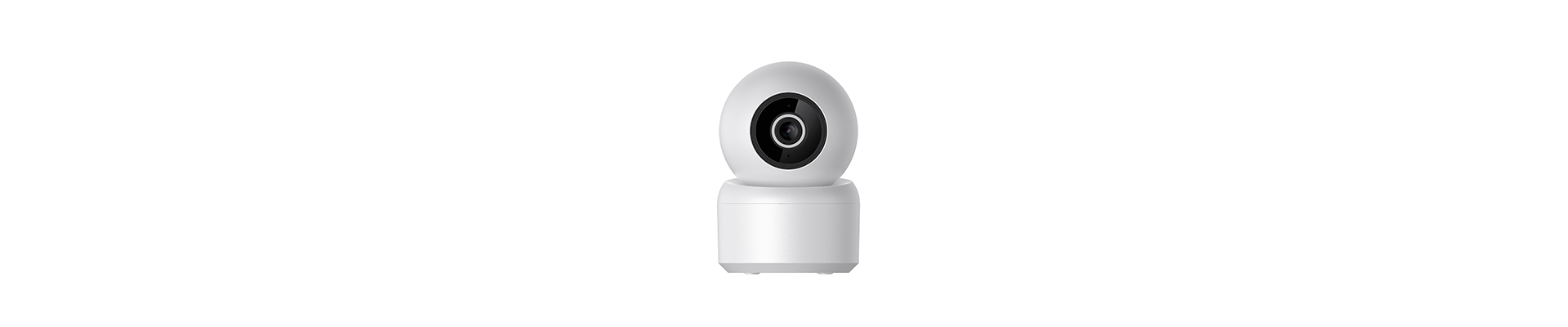

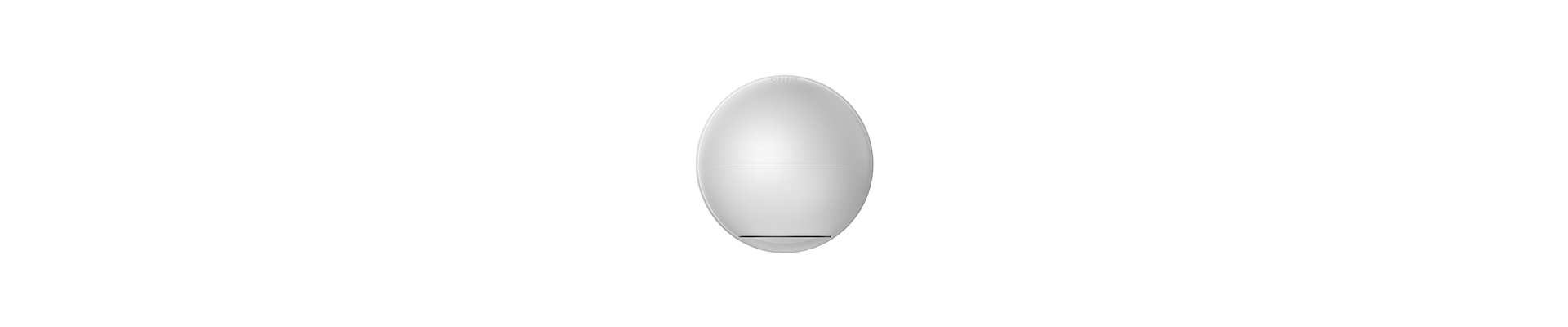

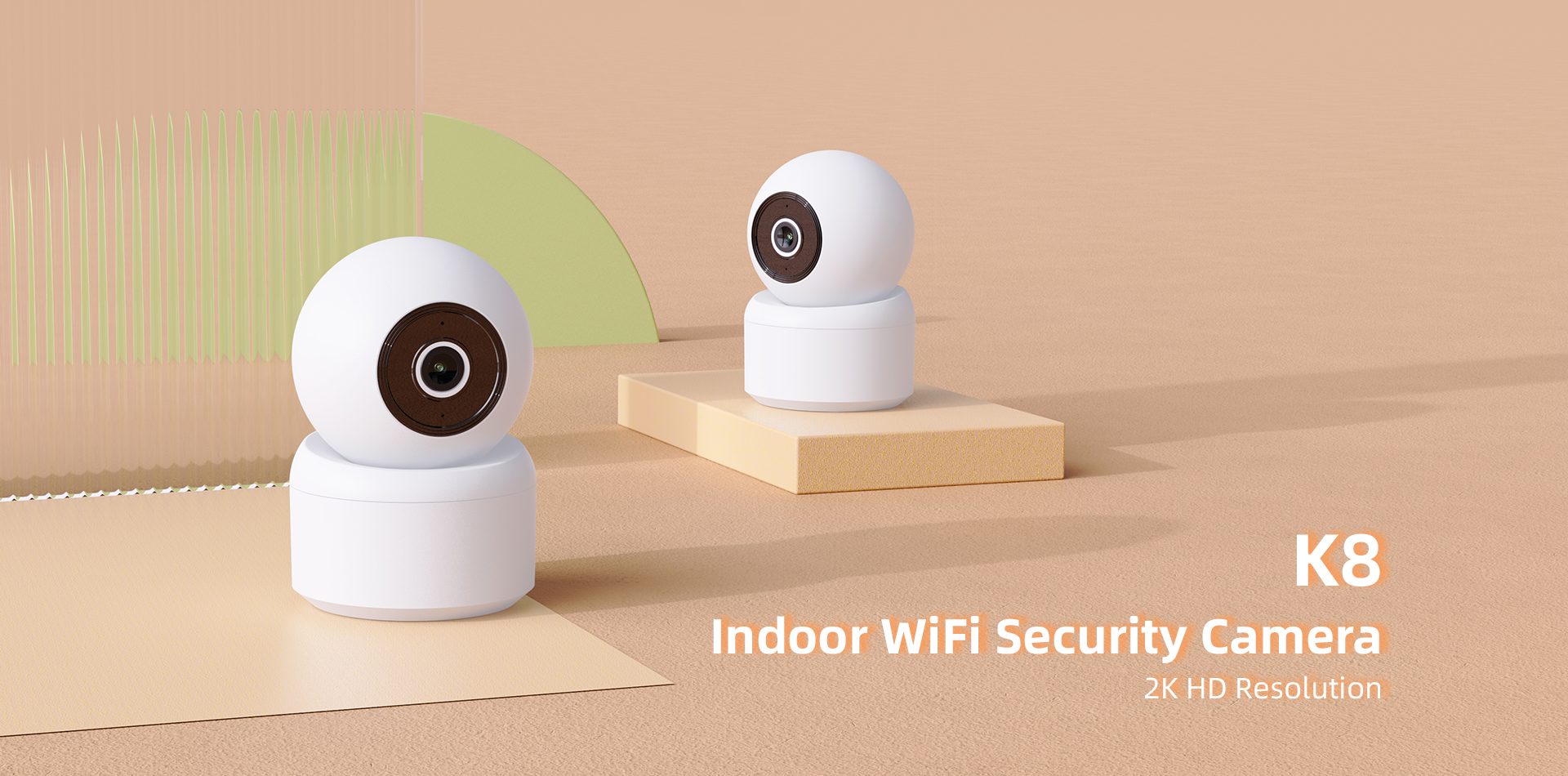

K8 Smart PT Camera
Product Overview：
1: 3MP video pixels 1/2.7-inch CMOS
2: Full HD 2304*1296 resolution;
3: HD lens 3.92mm fixed;
4: IR-CUT automatic switching to achieve day and night monitoring;
5: 4pcs 850mm IR LEDs,IR distance: 8-10M;
6: Support digital WDR and 3D noise reduction functions;
7: H.264 video compression technology, high image quality, low bit rate;
8: Support mobile phone remote monitoring (iOS, Android);
9: Supporting cloud services and third-party value-added services, optional (Alexa, Google);
10: Support motion detection、sound detection、human body detection、cry detection、motion tracking、PTZ calibration、human body adjustable smart frame and so on;
11: Supports one-click call and PTZ rotation;
12: Support 2.4G WIFI pair and Bluetooth fast pair;
Parameters | Specifications | |
CMOS | CMOS size | 1/2.7-inch CMOS |
Video | Effective Pixels | 2304*1296(3MP) |
Compression standard | H.264 | |
Frame rate | Fixed 20fps | |
Stream bit rate | Changeable 32Kbps-1.5Mbps | |
Resolution | HD(Mainstream):2304*1296 SD(Sub-stream): 640*360 | |
Video format | MP4 | |
Audio | Bit rate | 8kbps |
Audio format | G711A | |
Lens | Focal length | 3.92mm |
Relative pore size | F2.2±5% | |
Interface type | M12*0.5 | |
FOV | D:107° H:89° V:48° | |
Resolution | 3MP | |
Number of lens layers | 1G3P | |
Night vision | IR Distance | 8-10 m |
Photosensitive method | SENSOR metering | |
IR-CUT | YES | |
IR Light | 6pcs 850nm IR LEDs | |
White light | N/A | |
Rotation angle | Pan/Tilt | 350°/52° |
WIFI | Standard | IEEE 802.11 b/g/n |
Distance | 30-40m(No barriers) | |
Bluetooth | Bluetooth | Support |
Speaker | Speaker function | Support Impedance 8Ω |
Microphone | Sensitivity | -36dB ± 2dB |
Signal-to-noise ratio | ≥58dB | |
Storage | Cloud storage | Support |
Storage | Supports TF cards, up to 256GGB | |
Interface | Reset button | Support |
Power interface | USB 5V/1A | |
Wired network interface | N/A | |
| Power adapter | Output voltage | DC 5V/1A |
Connector | USB 5V/1A | |
Certifications | CE、ROHS | |
Working environment | Operating Temperature | -10℃ - 50℃ |
Storage temperature | -20℃ - 60℃ | |
Operating humidity | Less than 95% (non-condensing) | |

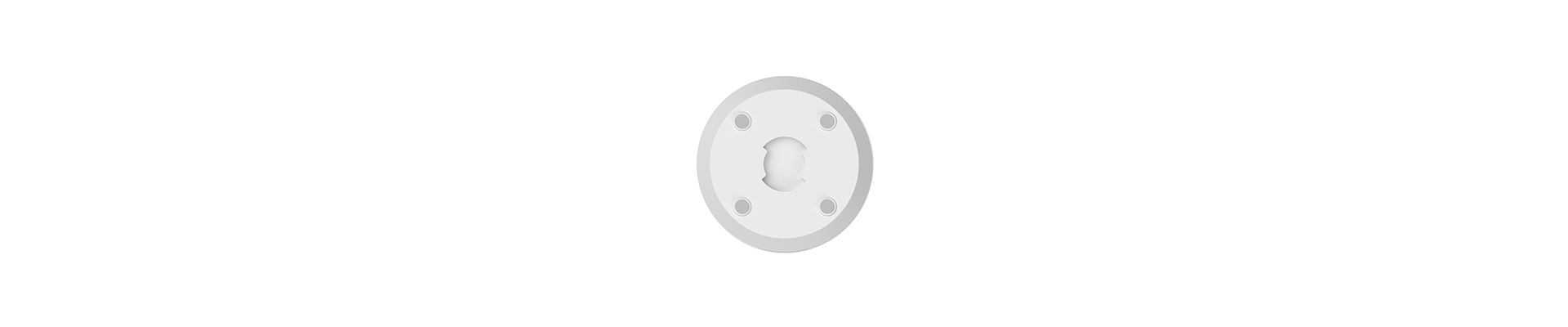

Installation mode and accessories | Installation | Wall mounted with bracket or Floor |
Packing list | Camera x 1 Instruction manual x 1 installation kit x 1 Upper wall support x 1 | |

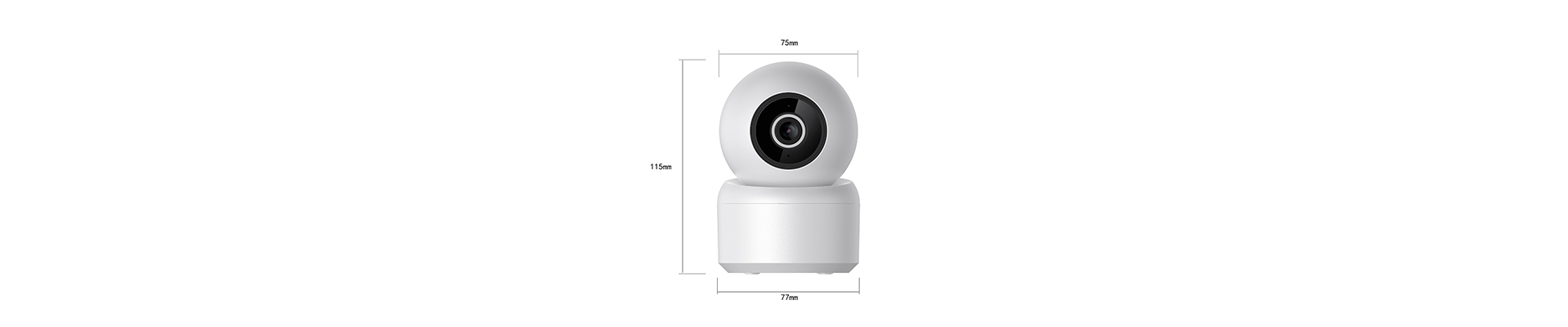

Size | Length*Height | 77*77*115mm |
Weight | Net weight | 180g |
One-way and two-way intercom delay?
Detect whether there is delay/stuck in the network, such as PTZ rotation, real-time video, and video playback.
The camera has halos, strobes, etc?
1. The equipment testing environment has lights pointing directly at the camera. 2. Light refracts to the camera causing halo.
The camera is blurry?
1. If the camera fogs up, you can place the camera in a place with direct sunlight to evaporate the fog (Note: Do not point the camera lens directly at the sun) 2. The camera heats up severely during operation, which affects imaging components such as CMOS and causes blur. 3. When the light is too dark or too bright, HDR or WDR is not turned on.
The camera screen turns purple with many white spots?
1. The brightness of the environment where the camera is located is low, and the IR-CUT switch is activated but the color light mode is not switched normally, causing the picture to appear purple. 2. The effect of light refraction, you can adjust the picture to see if it is effective.
Due to an abnormal power outage during the remote OTA upgrade, the device cannot operate normally after repowering?
You can put the upgrade program into the TF card for local upgrade. The upgrade process: 1. A TF card with the file format of FAT32 → 2. Put the upgrade program into the source path of the upgraded TF card (not under the folder) → 3. Power off the device, put in the upgrade TF card and then power it on again → 4. The device will be upgraded successfully and restart in about 2 minutes. After restarting, power off and remove the upgrade TF card → 5. Power on and test whether the device is working normally.
This product does not have an installation video
