B2 Baby Monitor
Product Overview：
1: 2MP video pixels 1/3-inch CMOS
2: Full HD 1920*1080 resolution;
3: HD lens 4mm fixed;
4: IR-CUT automatic switching to achieve day and night monitoring;
5: 6pcs 940mm IR LEDs and 16pcs warm white ambient lights, IR distance: 8-10M;
6: Support digital WDR and 3D noise reduction functions;
7: H.265 video compression technology, high image quality, low bit rate;
8: Support mobile phone remote monitoring (iOS, Android);
9: Supporting cloud services and third-party value-added services, optional (Alexa, Google);
10: One-click baby (cry detection, lullaby, night light, soothing sound);
11: Support mobile phone and screen at the same time to watch live;
12: The screen supports four cameras at the same time;
13: Support VOX function, the screen can also monitor;

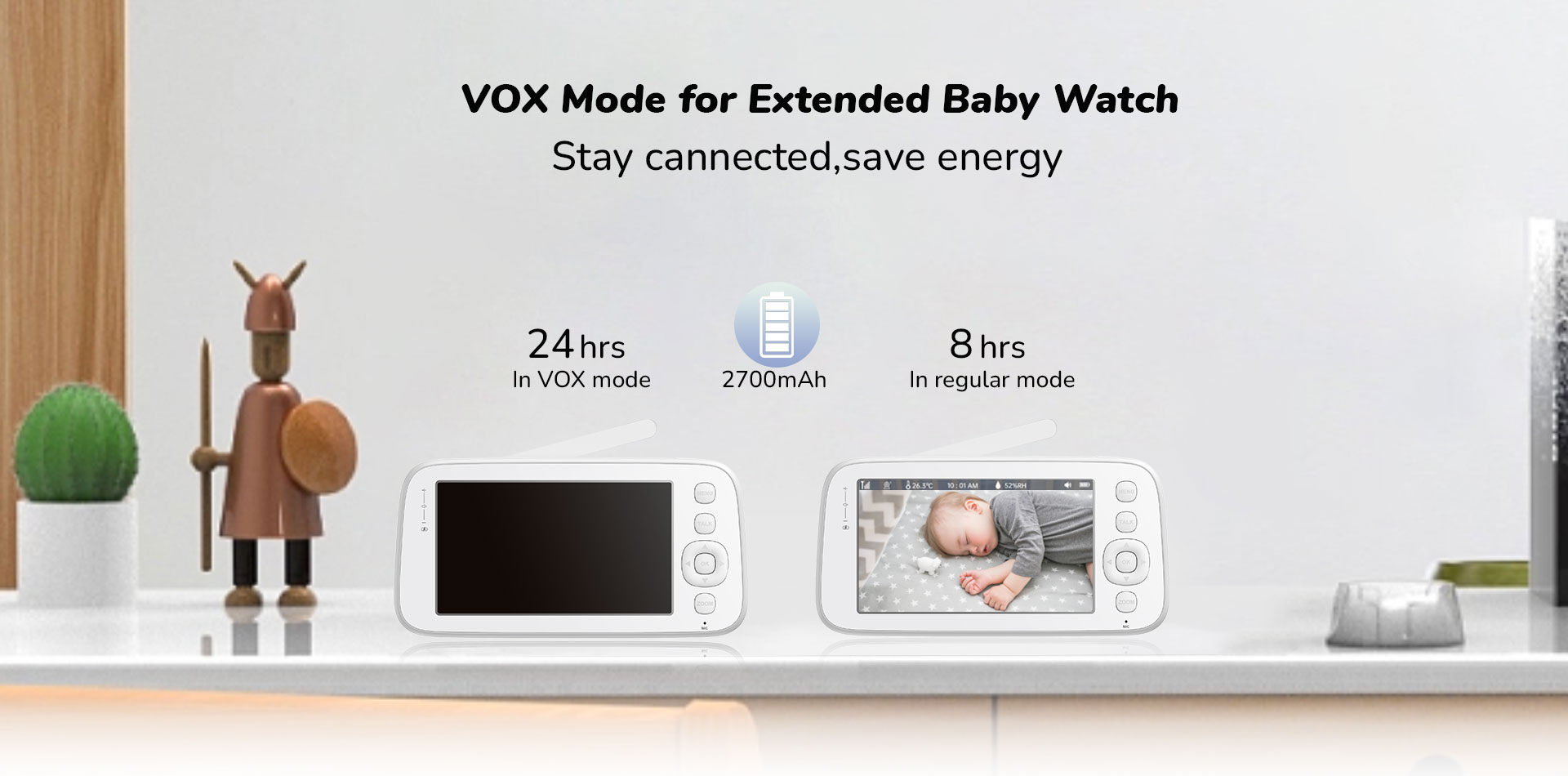

14: The screen end uses 2700mAh battery, the battery life can reach 24H (* Turn off VOX function);
15: Support 900Mhz and 2.4G, through the wall ability is stronger, longer transmission distance;
16: 720P screen, display image details;
Camera:
Parameters | Specifications | |
Video | Effective Pixels | 1920*1080（2MP） |
Compression standard | H.265 | |
Frame rate | Fixed 20fps | |
Stream bit rate | Changeable 32Kbps-1.5Mbps | |
Resolution | HD(Mainstream):1920*1080 SD(Sub-stream): 640*360 | |
Video format | MP4 | |
Audio | Bit rate | 64kbps |
Audio format | G711A | |
Lens parameters | Model | LK17-6000 |
Focal length | 4mm | |
Relative pore size | F2.0 | |
Interface type | M12*P0.5 | |
FOV | D:93.6° H:79.5° V:43.1° | |
Resolution | 2MP | |
Number of lens layers | 1G3P | |
Night vision | IR Distance | 8-10 m |
Photosensitive method | SENSOR metering | |
IR-CUT | YES | |
IR Light | 6pcs 940nm IR LEDs | |

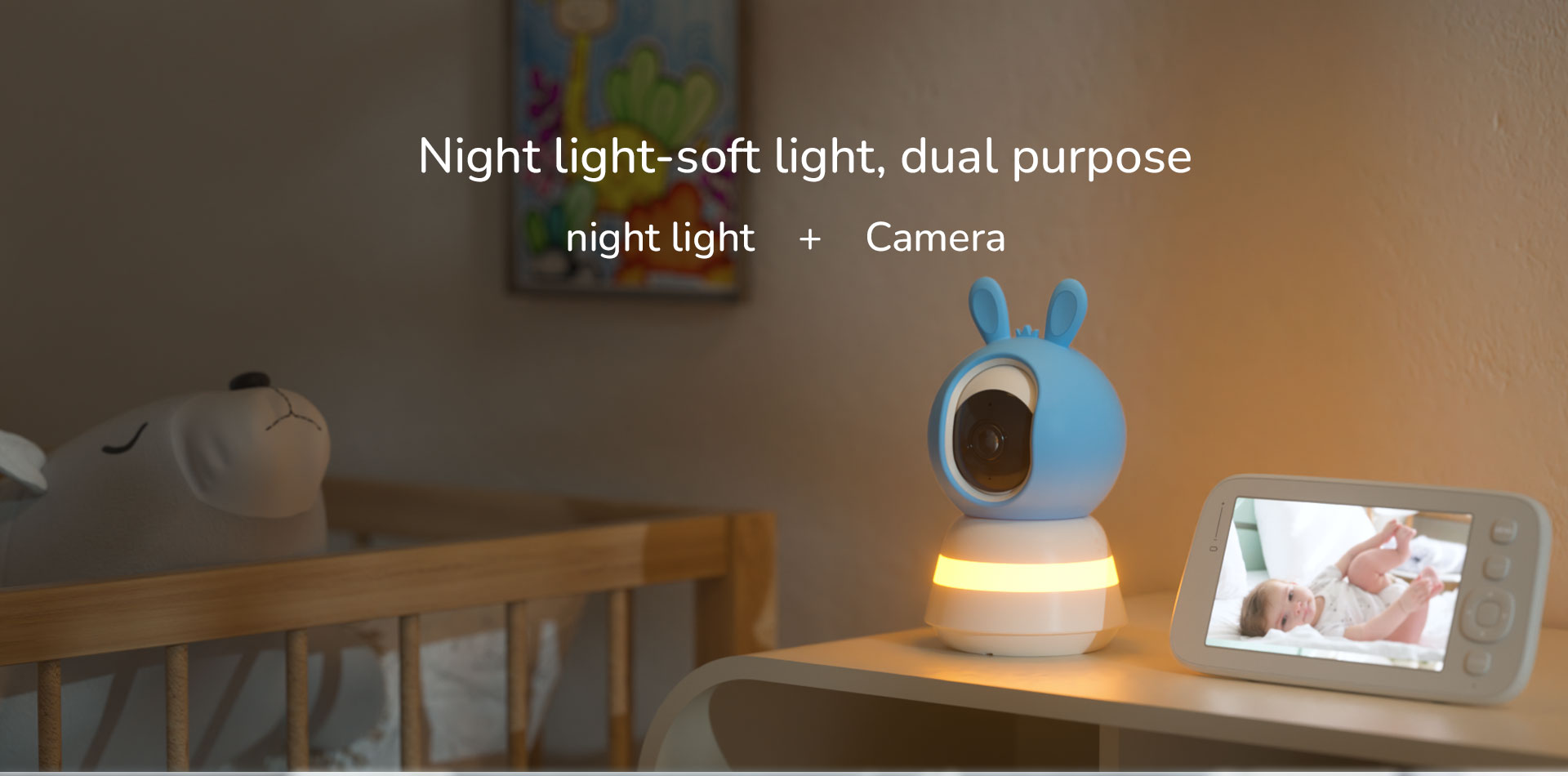

Ambient light | 16pcs warm white ambient lights | |
Wi-Fi | Model | ATBM6062U WIFI 2.4G+WIFI6+Bluetooth |
Standard | IEEE 802.11b/g/n/ax | |
Distance | 100m(No barriers) | |
Bluetooth | Bluetooth | Support |
Speaker | Speaker function | Support impedance 8Ω |
Microphone | Sensitivity | -36dB ± 2dB |
Signal-to-noise ratio | ≥58dB | |
Storage | Cloud storage | YES |
TF card storage | Supports TF cards, up to 256GB | |
Indicate light | Indicate device working state | 1.Steady on: Connected to the Internet 3.Slow blinking:Not connected to the Internet |
Interface | Reset button | YES |
Power interface | Type-C 5V/1A | |
Wired network interface | N/A | |

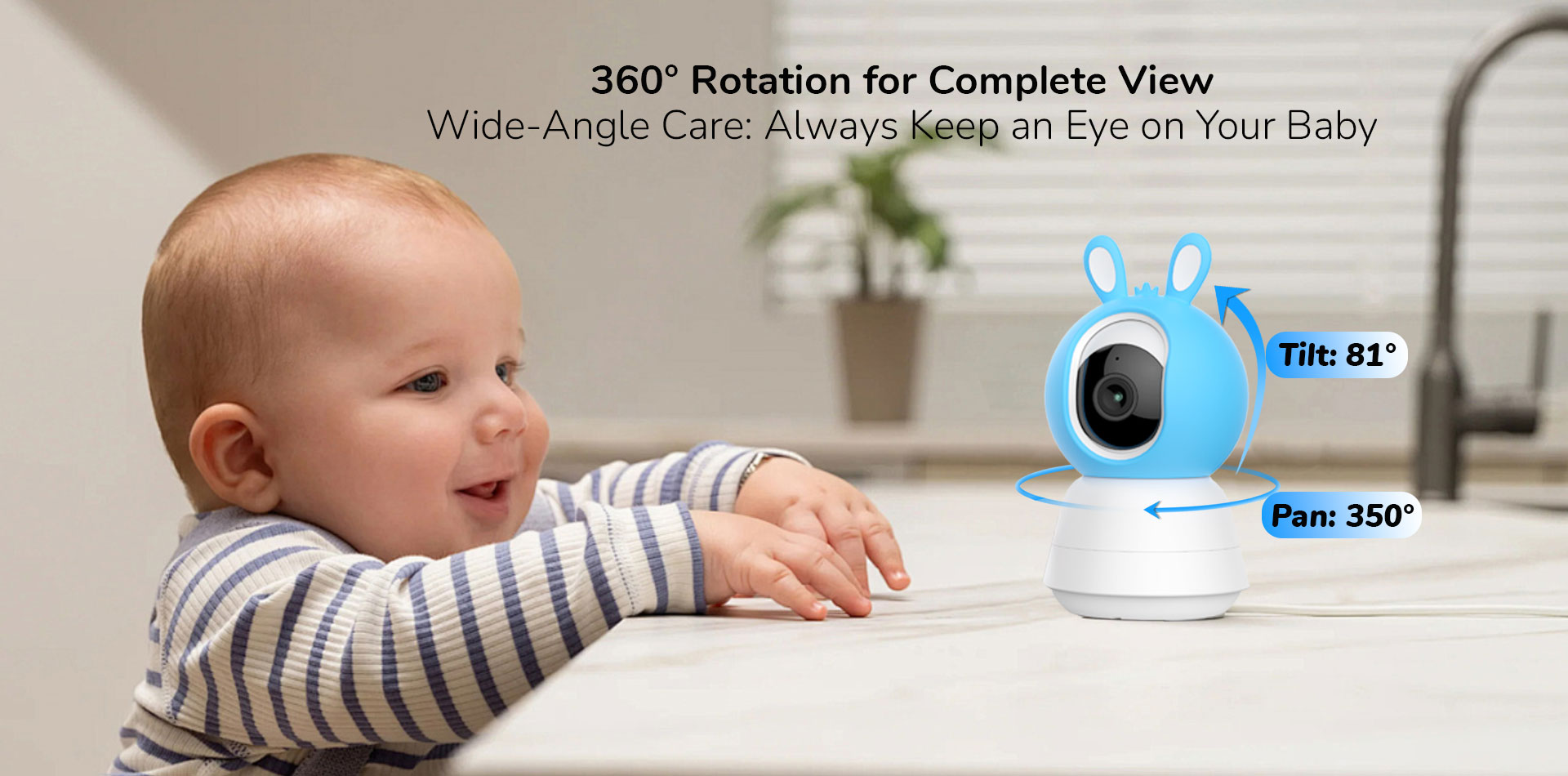

Rotate angle | Pan/Tilt | 350°/81° |
Power adapter | Output voltage | DC 5V/1A |
Connector | Type-C 5V/1A | |
Certifications | CE、ROHS、FCC | |
Working environment | Operating Temperature | -10℃ - 50℃ |
Storage temperature | -20℃ - 60℃ | |
Operating humidity | Less than 95% (non-condensing) | |
Installation mode and accessories | Installation | Wall mounted with bracket、Flat |
Packing list | Power adaptorx1 Camera×1 Manual×1 Installation Accessory Package×1 Installing kitx1 | |
Size | Length*Height | 78*119mm |
Weight | Net weight | 192g |
inch screen:
Parameters | Specification | |
Screen | Size | 5 inch 165*84mm |
Resolution | 1080*720P | |
Battery | Lithium battery | 2700mAh |
SPK | Speaker | Support |
Microphone | Sensitivity | -36dB± 2dB |
Signal-to-Noise ratio | ≥58dB | |
Interface | Power interface | Type-c 5V |
Button | Reset button、Power off button/Return、Up/down/Left/Right、OK button、Intercom、Menu button、Camera switch button、Music button | |
WiFi | Support 900M WIFI point to point mode;Support Automatically pair;Support 1 screen pair 4 cameras | |
General | Working temperature | -10℃ - 50℃ |
Storage temperature | -20℃ -60℃ | |
Working humidity | Less than 95%(No barriers) |
If a 256G SD/TF card is working continuously 24 hours a day, how many days will it be full?
According to current calculations, the device recording is the main stream (the real-time preview of the web page is the sub-stream). An 8G memory card can record for about 18 hours, a 16G memory card can record for 36 hours, and so on, it can be concluded that 256G can record without interruption. Recording takes about 24 days.
There is noise in one-way and two-way intercoms?
1. There is audio input/output signal interference near the microphone/speaker. 2. There is a problem with the microphone/speaker hardware, please contact the manufacturer for resolution.
One-way and two-way intercom delay?
Detect whether there is delay/stuck in the network, such as PTZ rotation, real-time video, and video playback.
The camera has halos, strobes, etc?
1. The equipment testing environment has lights pointing directly at the camera. 2. Light refracts to the camera causing halo.
The camera is blurry?
1. If the camera fogs up, you can place the camera in a place with direct sunlight to evaporate the fog (Note: Do not point the camera lens directly at the sun) 2. The camera heats up severely during operation, which affects imaging components such as CMOS and causes blur. 3. When the light is too dark or too bright, HDR or WDR is not turned on.
The camera screen turns purple with many white spots?
1. The brightness of the environment where the camera is located is low, and the IR-CUT switch is activated but the color light mode is not switched normally, causing the picture to appear purple. 2. The effect of light refraction, you can adjust the picture to see if it is effective.
Due to an abnormal power outage during the remote OTA upgrade, the device cannot operate normally after repowering?
You can put the upgrade program into the TF card for local upgrade. The upgrade process: 1. A TF card with the file format of FAT32 → 2. Put the upgrade program into the source path of the upgraded TF card (not under the folder) → 3. Power off the device, put in the upgrade TF card and then power it on again → 4. The device will be upgraded successfully and restart in about 2 minutes. After restarting, power off and remove the upgrade TF card → 5. Power on and test whether the device is working normally.
