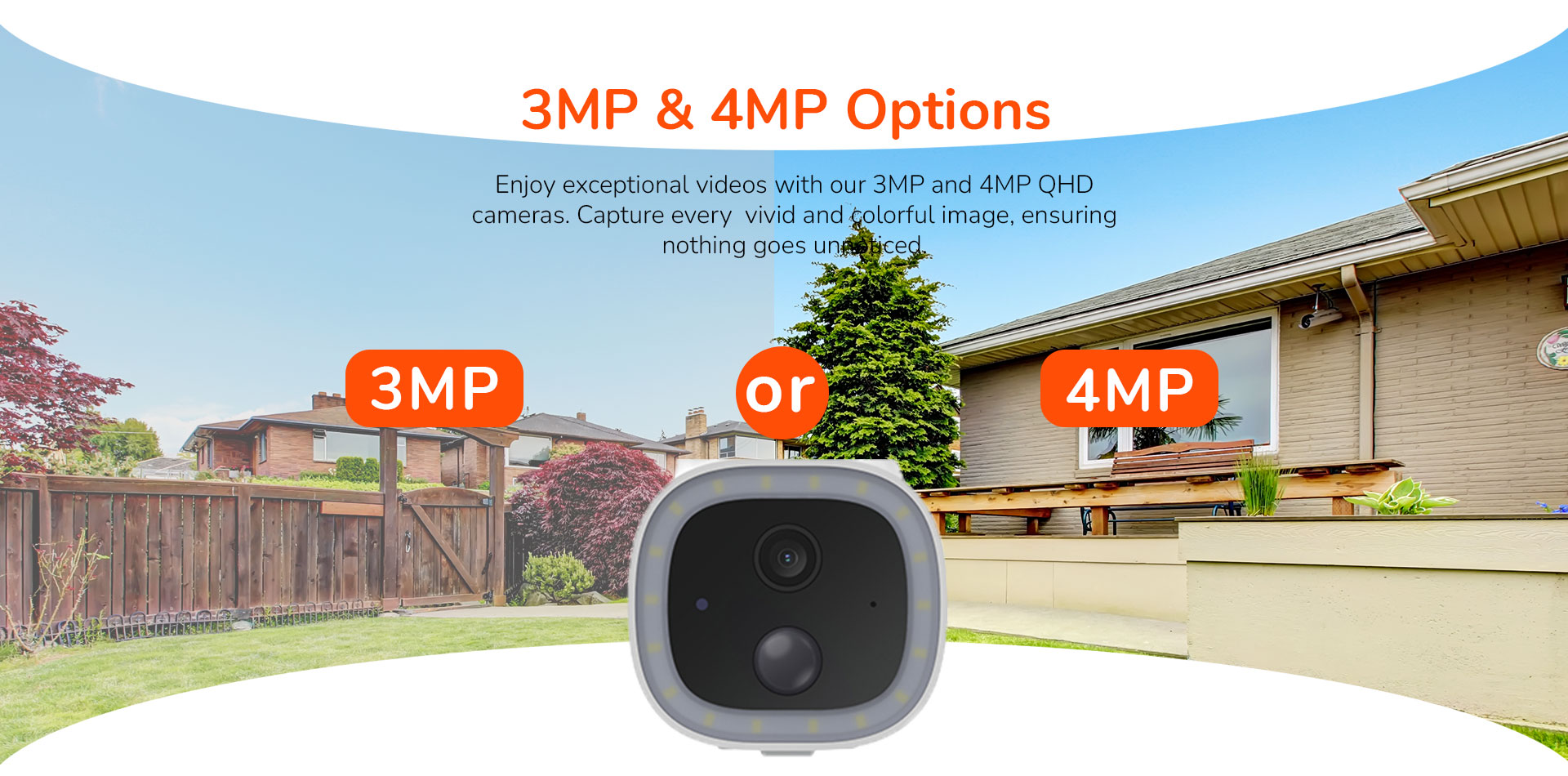

1: 4MP video pixels 1/2.8-inch CMOS
2: Full HD 2560*1440 resolution;
3: HD lens 3.83mm fixed;
4: IR-CUT automatic switching to achieve day and night monitoring;
5: 6pcs 850mm IR LEDs and 16pcs white lights, IR distance: 8-10M;
6: Support digital WDR and 3D noise reduction functions;
7: H.265 video compression technology, high image quality, low bit rate;
8: Support mobile phone remote monitoring (iOS, Android);
9: Supporting cloud services and third-party value-added services, optional (Alexa, Google);

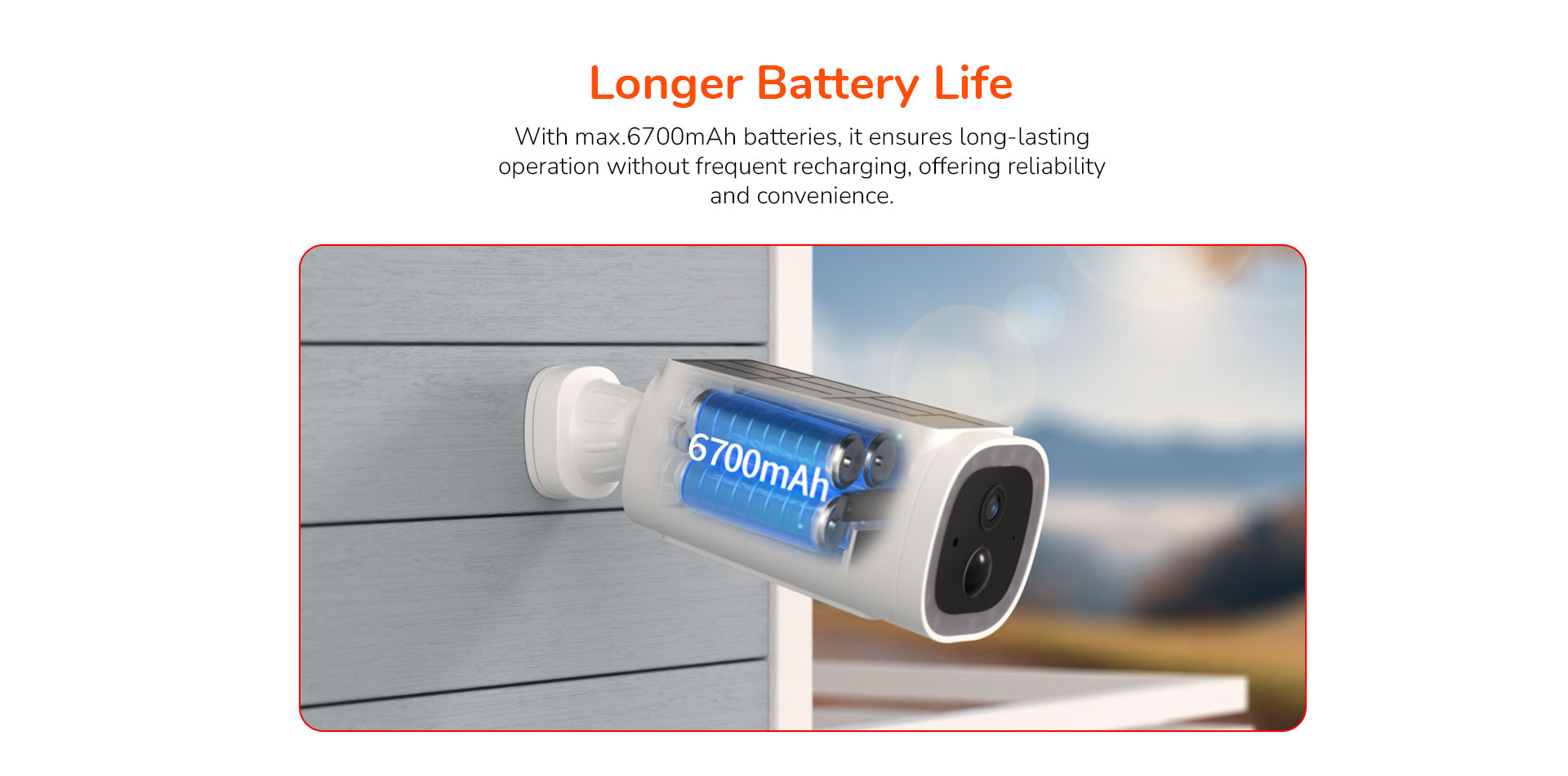

10: Built-in non-removable rechargeable 5200mAh/3.7V battery,support customize 6700mAh/3.6V battery,support camera working 2-3 months;
11: High precision PIR body movement detection alarm, filter false positives, adjustable sensitivity (3~9 m);

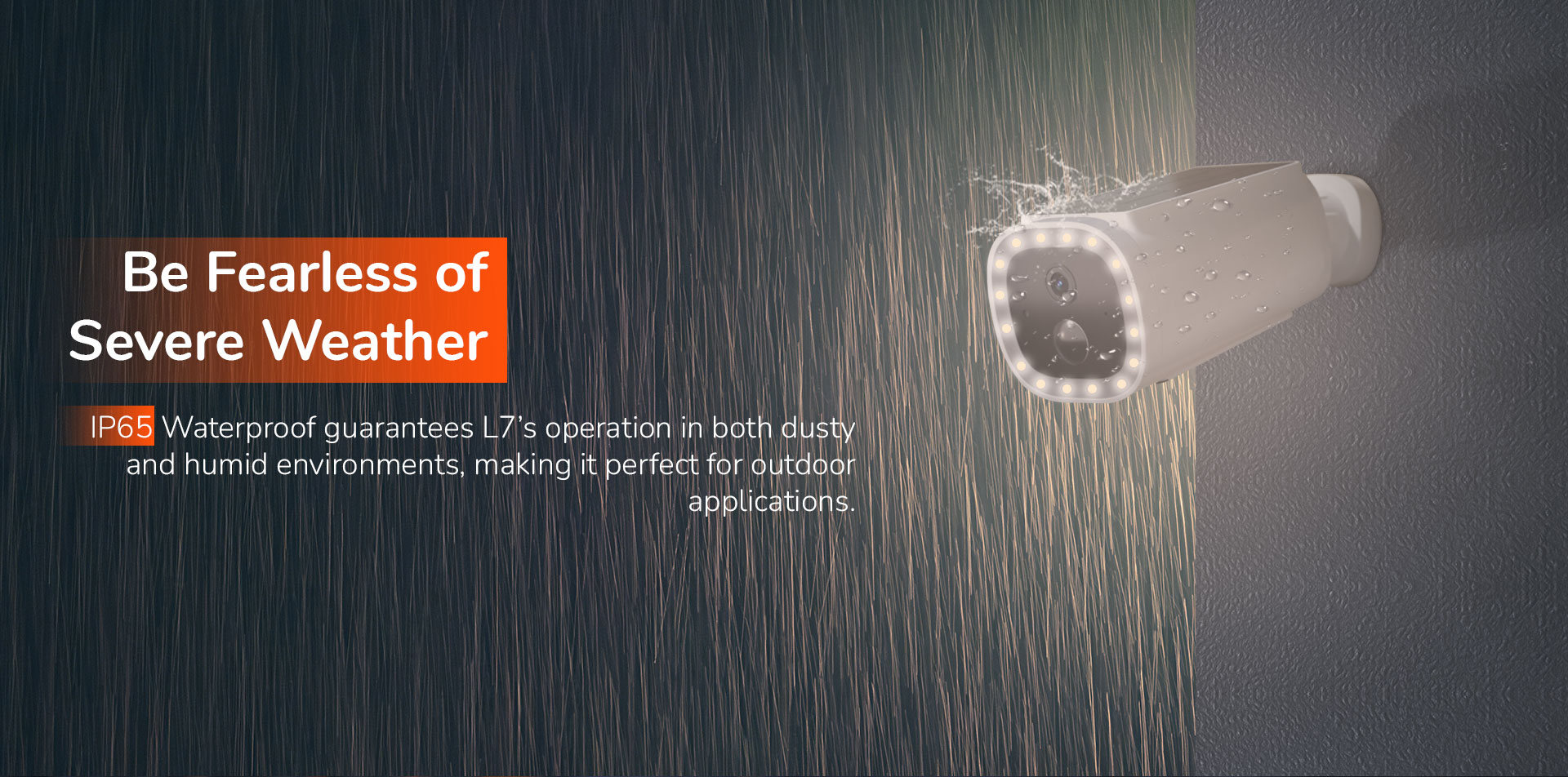

12: IP65 protection level to meet the requirements of indoor and outdoor scenarios;

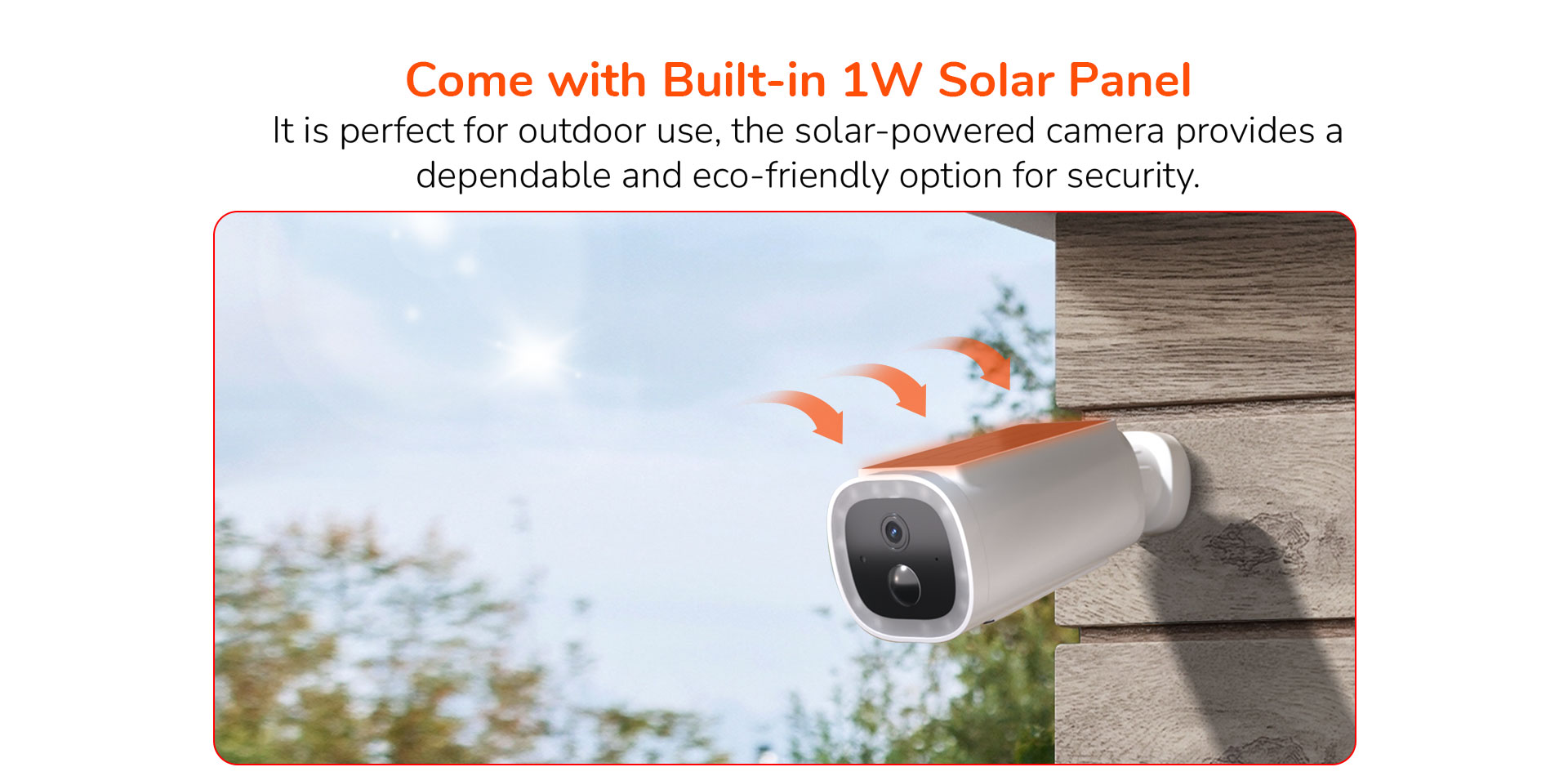

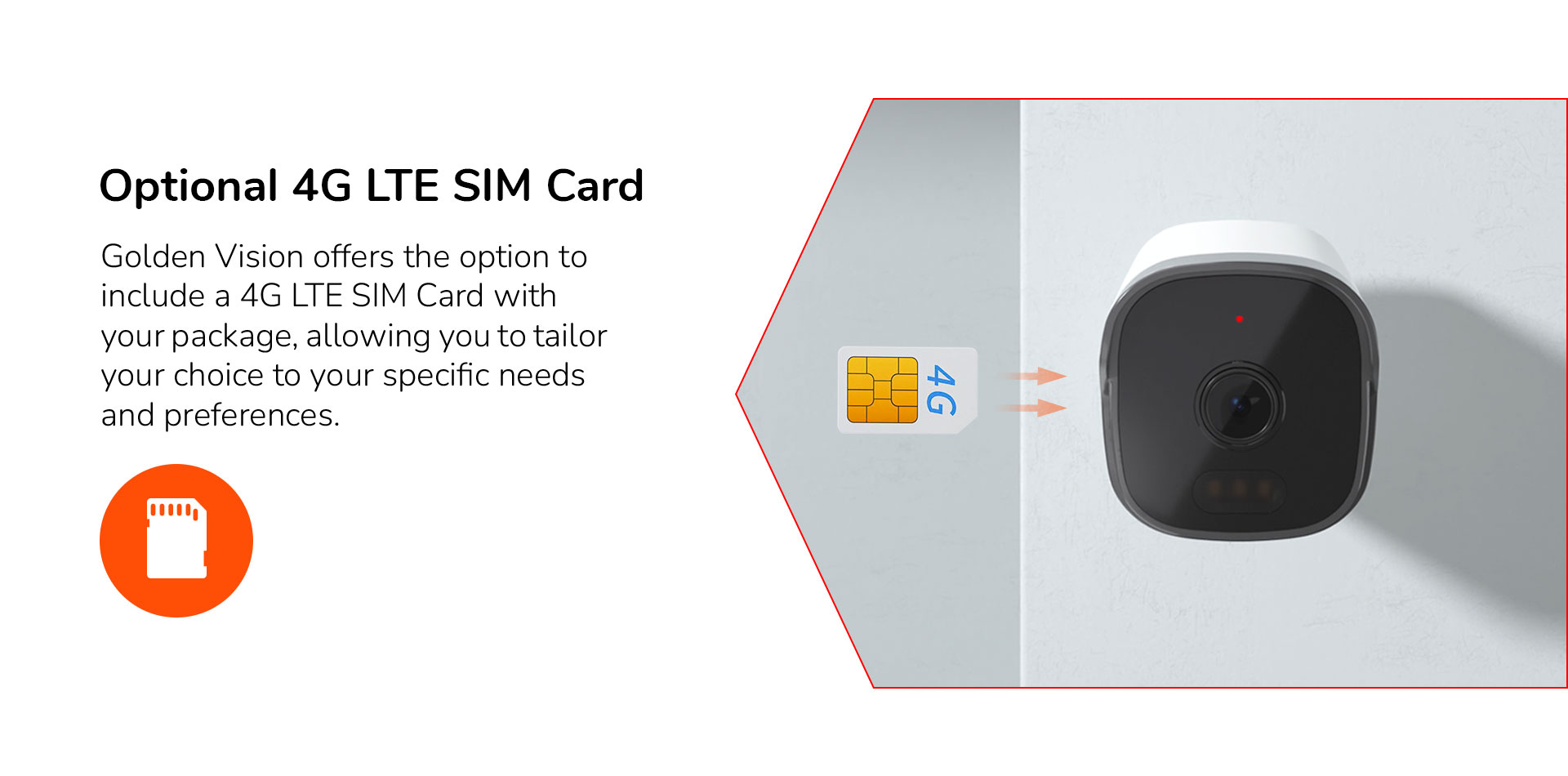

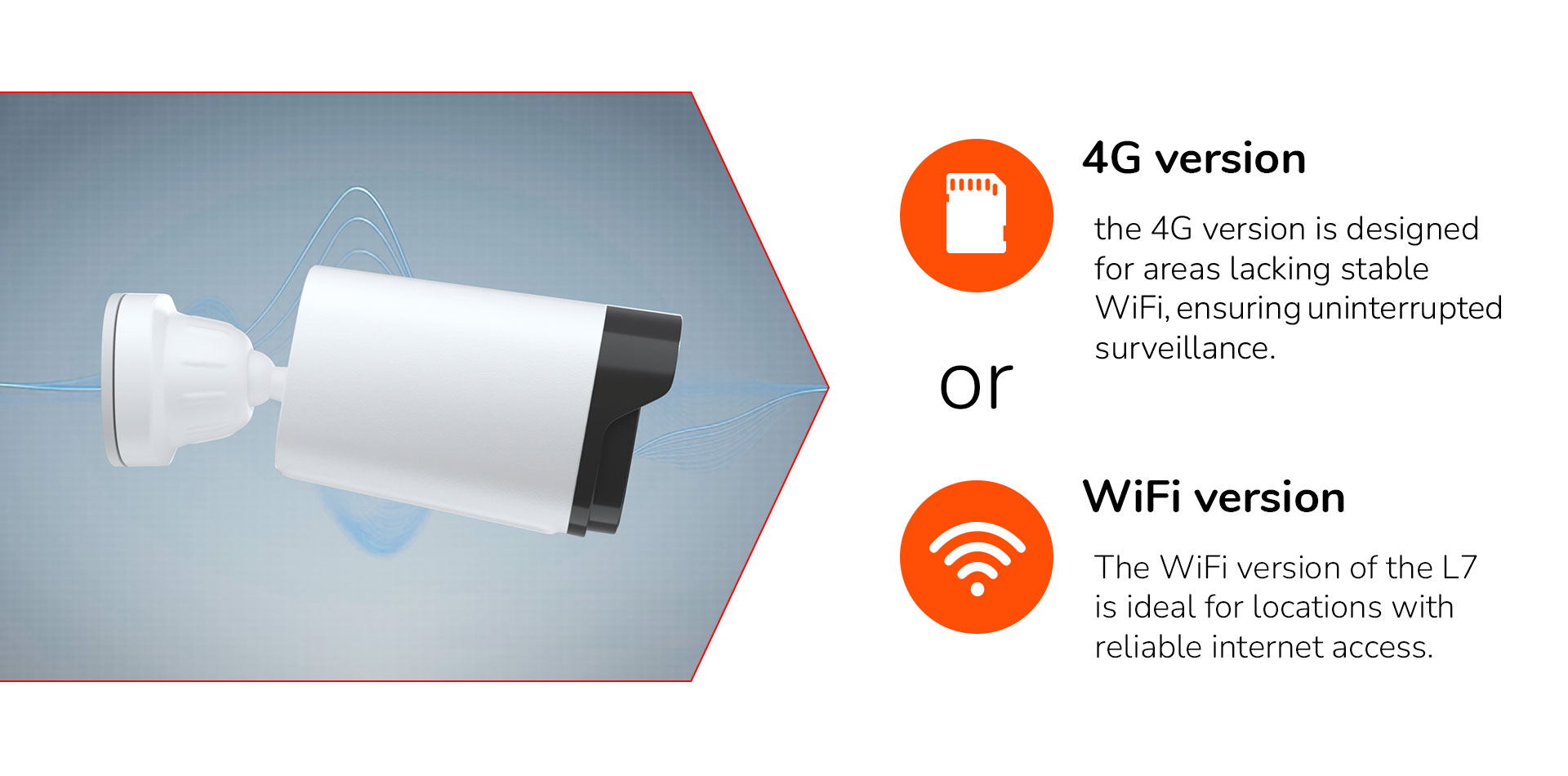

13: Support solar panel charge battery and 4G or WIFI one of two;
14: Support motion detection、sound detection、customization area(smart frame)、human body detection、cry detection and so on;
Parameters | Specifications | |
CMOS size | 1/2.8-inch CMOS | |
Video | Effective Pixels | 2560*1440(4MP) |
Compression standard | H.265 | |
Frame rate | Fixed 20fps | |
Stream bit rate | Changeable 32Kbps-1.5Mbps | |
Resolution | HD(Mainstream):2560*1440 SD(Sub-stream): 640*360 | |
Video format | MP4 | |
Audio | Bit rate | 64kbps |
Audio format | G711A | |
Lens parameters | Focal length | 4mm |
Relative pore size | F1.6 | |
Interface type | M12*P0.5 | |
FOV | D:108.7° H:91.3° V:49° | |
Resolution | 4MP | |
Number of lens layers | 1G3P | |
Night vision | IR Distance | 8-10 m |
Photosensitive method | Photo diode | |
IR-CUT | YES | |
IR Light | 6pcs 850mm IR LEDs | |
White light | 16pcs white lights | |
Standard | 2.4G WIFI IEEE 802.11b/g/n | |
Distance | 20~30M(No barriers) | |
Bluetooth | Bluetooth | N/A |
Speaker | Speaker function | Support impedance 8Ω |
Microphone | Sensitivity | -36dB ± 2dB |
Signal-to-noise ratio | ≥58dB | |
Storage | Cloud storage | YES |
TF card storage | Supports TF cards, up to 256GB | |
Battery | Capacity | Rechargeable and removable 5200mAh/3.7V |
Indicate light | Indicate device working state | 1.Steady on: Connected to the Internet 3.Slow blinking:Not connected to the Internet |
Interface | Reset button | YES |
Power interface | Type-C 5V/2A | |
Wired network interface | N/A | |
Power adapter | Output voltage | DC 5V/2A |
Connector | USB 5V/2A | |
Certifications | CE、ROHS、FCC | |
Working environment | Operating Temperature | -10℃ - 50℃ |
Storage temperature | -20℃ - 60℃ | |
Operating humidity | Less than 95% (non-condensing) | |
Installation mode and accessories | Installation | Wall mounted with bracket、Flat |
Packing list | Power adaptorx1 Camera×1 Manual×1 Installation Accessory Package×1 Installing kitx1 | |
Size | Length*Height | N/A |
Weight | Net weight | N/A |
How to determine the authenticity of black light full-color cameras
In recent years, the image quality of smart WiFi cameras has rapidly improved, from infrared cameras, starlight full-color cameras to the current black light full-color cameras. Ordinary users also have higher requirements for the imaging effect of IP cameras, with pixel indices increasing from 2 million or 3 million to 5 million or even tens of millions of pixels. Although pixel improvement is fast, in dark or overly bright environments, smart outdoor WiFi cameras are still prone to capturing blurry or overexposed images, making it difficult for them to capture details.
If a 256G SD/TF card is working continuously 24 hours a day, how many days will it be full?
According to current calculations, the device recording is the main stream (the real-time preview of the web page is the sub-stream). An 8G memory card can record for about 18 hours, a 16G memory card can record for 36 hours, and so on, it can be concluded that 256G can record without interruption. Recording takes about 24 days.
Why can’t the camera connect to the WIFI network?
1. Confirm whether the camera is 2.4G or dual-band (2.4G+5G) or WIFI6 2. The device is far away from the router, resulting in unstable network connection 3. The WIFI signal value is low and the network is unstable, resulting in the inability to connect to the Internet. You can check whether the signal is abnormal in the background. 4. The router is unstable and has no assigned IP address, or the IP address is occupied. Check whether the device has obtained an IP address.
The video memory card cannot be recognized?
1. The memory card file format is wrong. If it cannot be formatted to FAT32 on the camera, it can be formatted on the computer. 2. At present, memory cards/4G cards do not support hot-swap, so as to prevent the memory card from being unrecognized due to hot-swapping. 3. The memory card is damaged, try replacing the memory card.
The memory card is recognized but no video is recorded or the video is incomplete?
1. The memory card file format is wrong. If it cannot be formatted to FAT32 on the camera, it can be formatted on the computer. 2. The memory card's reading and writing speed affects the recording, resulting in abnormal recording. It is recommended to choose a TF/SD card with a reading and writing speed of Class 10 or above, otherwise it may cause the device's recording to be lost or stuck. 3. The recording mode is not selected correctly. Continuous recording or event recording can be selected.
The real-time video preview is abnormal - the video preview is stuck, delayed, or cannot be previewed?
1. If the network freezes or the device network signal is unstable, resulting in video playback freezes or delays, you can check the device WIFI/4G network signal value in the background or switch to SD mode and try again. 2. The network bandwidth is not enough. The real-time video preview of the device will occupy bandwidth. If multiple devices preview the video at the same time, the bandwidth will be insufficient.
No picture appears when the device is connected to the video surveillance software or NVR device?
1. The device does not have the Onvif function enabled. Please find the manufacturer to enable the Onvif function. 2. The device access monitoring software or NVR parameters are incorrect. The current default parameters for the company's camera to connect to the NVR are: username-admin password-123456 IP: can be seen in the device Onvif menu (usually a local IP address, in the WIFI router Below the gateway) Port: 8000 or 8899 (the port may be different for different customers) 3. The device video compression code is H.265, and the monitoring software or NVR does not support H.265.
The night vision function is not working properly and the IR-CUT switching is abnormal?
1. The illumination in the environment where the equipment is located does not meet the triggering requirements. 2. The correct night vision mode is not selected or the night vision mode function is not turned on, and the device cannot switch between infrared night vision or full color night vision. 3. The device’s night vision mode switches abnormally, please contact the manufacturer for resolution. 4. If the fill light or infrared light is always on when the device is powered on, please contact the manufacturer for resolution. 5. Confirm whether the device uses hard or soft photosensitivity, and confirm with the manufacturer whether it is a photosensitivity problem.
The AI functions of motion detection, sound detection, cry detection, motion tracking, and humanoid detection light are not triggered properly?
1. These functions are not added to the device or the main control does not support them. Please contact the manufacturer for resolution. 2. Low sensitivity causes normal triggering 3. The camera screen is blocked 4. The default interval between single-category alarm triggering and uploaded alarm notification is 1 minute. Repeated alarm triggering and notification messages will not be used 2 or more times within 1 minute.
One-way and two-way intercom delay?
Detect whether there is delay/stuck in the network, such as PTZ rotation, real-time video, and video playback.
