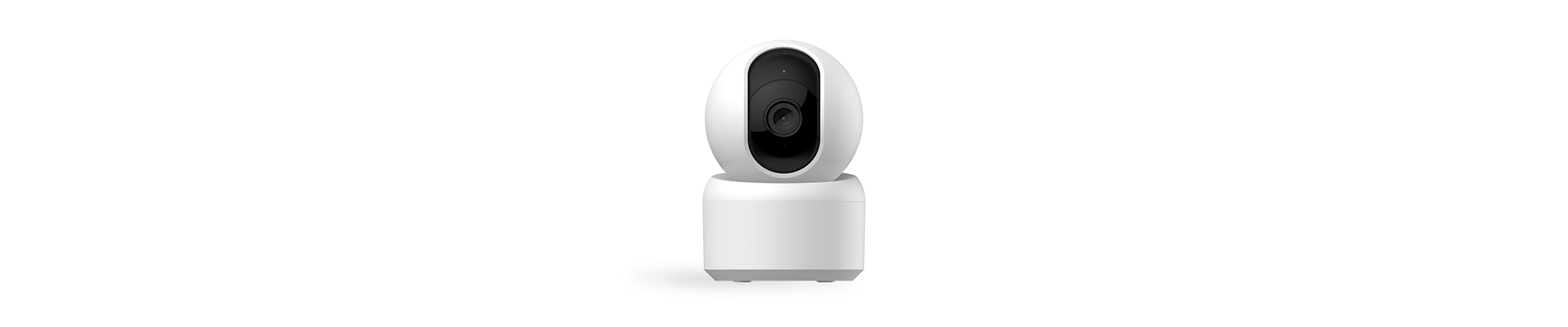

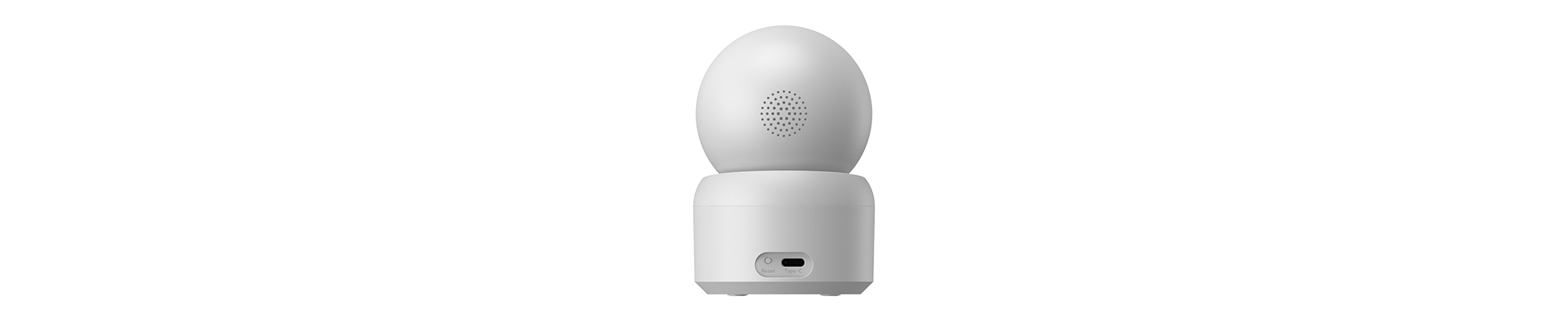

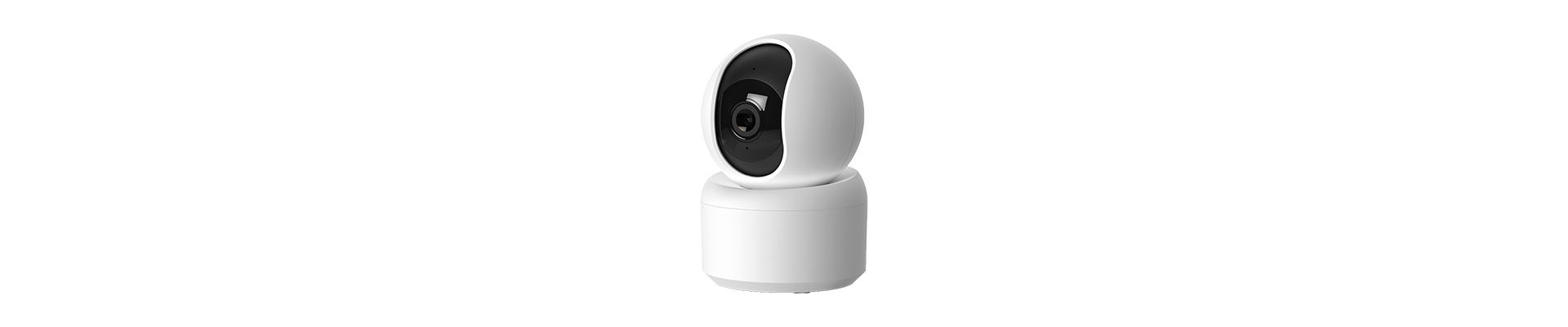

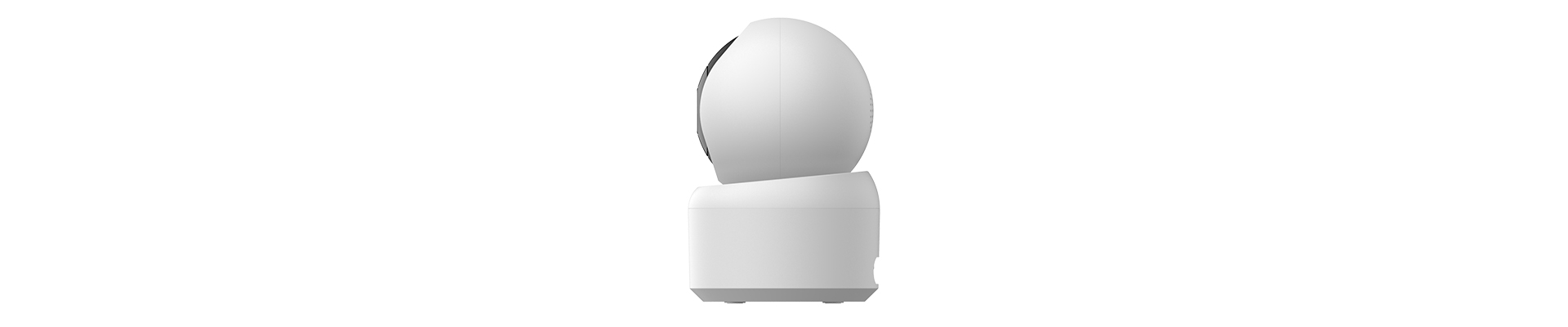

Smart PT Camera Z2
Product Overview：
1: 3MP video pixels 1/3-inch CMOS
2: Full HD 2304*1296 resolution;
3: HD lens 4mm fixed;
4: IR-CUT automatic switching to achieve day and night monitoring;
5: 4pcs 850mm IR LEDs,IR distance: 8-10M;
6: Support digital WDR and 3D noise reduction functions;
7: H.265 video compression technology, high image quality, low bit rate;
8: Support mobile phone remote monitoring (iOS, Android);
9: Supporting cloud services;

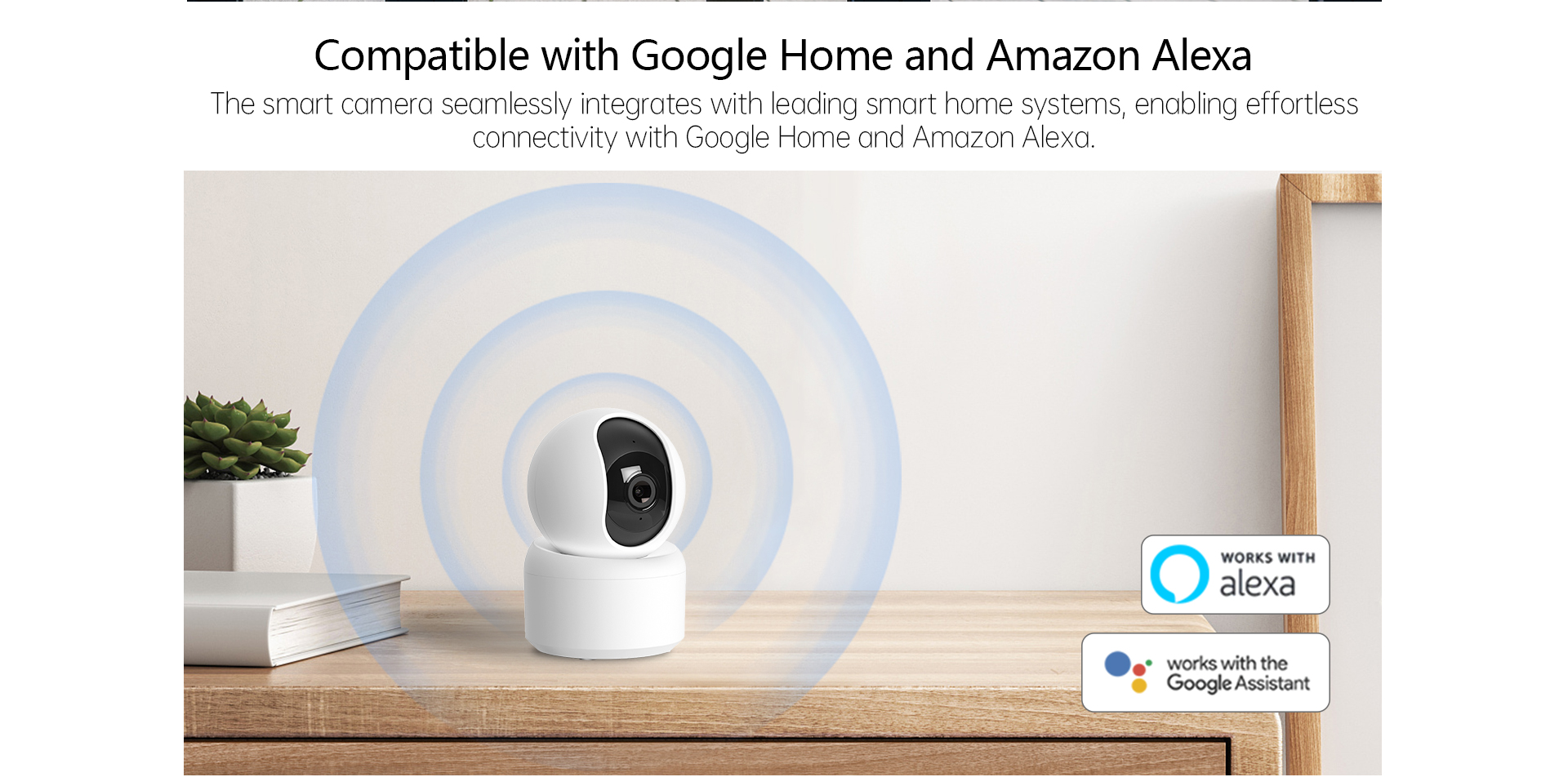

10: Support third-party value-added services, optional (Alexa, Google);
11: Optional indicate light(Default no indicate light);
12: Support motion detect、sound detect、humanoid filter、human frame、IR night vision、two-way taking;
Parameters | Specifications | |
Image sensor | CMOS size | 1/3-inch CMOS |
Video | Effective Pixels | 2304*1296(3MP) |
Compression standard | H.265 | |
Frame rate | Fixed 20fps | |
Stream bit rate | Changeable 32Kbps-1.5Mbps | |
Resolution | HD(Mainstream):2304*1296 SD(Sub-stream): 640*360 | |
Video format | MP4 | |
Audio | Bit rate | 8kbps |
Audio format | G711A | |
Lens | Focal length | 4mm±5% |
Relative pore size | F2.1±5% | |
Interface type | M12*0.5 | |
FOV | D:106.3° H:88.9° V:47.5° | |
Resolution | 3MP | |
Number of lens layers | 1G3P | |
Night vision | IR Distance | 8-10 m |
Photosensitive method | SENSOR metering | |
IR-CUT | YES | |
IR Light | 4pcs 850nm IR LEDs | |
White light | N/A | |

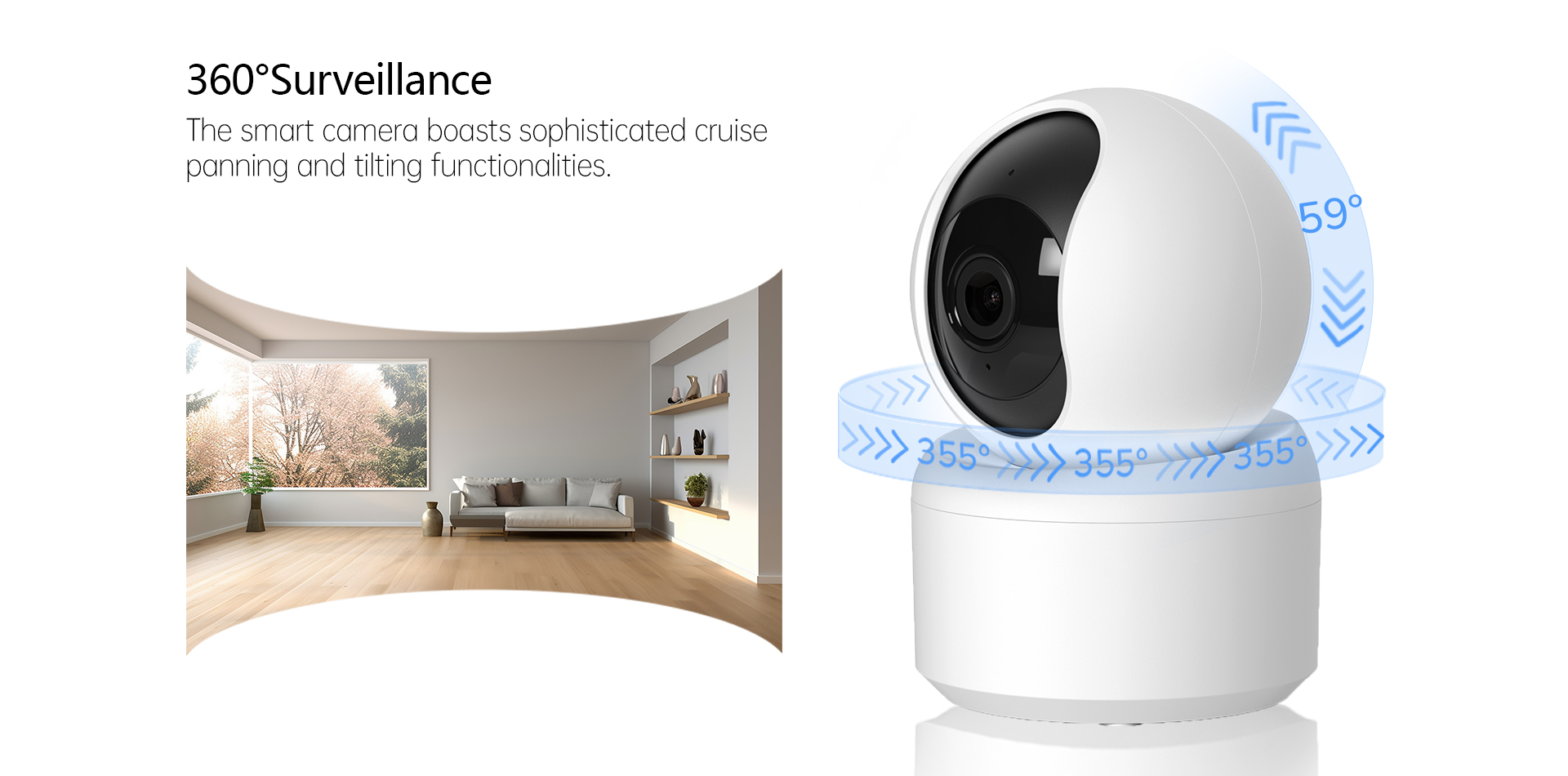

Rotation angle | Pan/Tilt | 355°/59° |
WIFI | Standard | IEEE 802.11 b/g/n |
Distance | 30-40m(No barriers) | |
Bluetooth | Bluetooth | Support |
Speaker | Speaker function | Support Impedance 8Ω |
Microphone | Sensitivity | -36dB ± 2dB |
Signal-to-noise ratio | ≥58dB | |
Storage | Cloud storage | Support |
Storage | Supports TF cards, up to 256GGB | |
Interface | Reset button | Support |
Power interface | Type-C 5V/1A | |
Wired network interface | N/A | |
Power adapter | Output voltage | DC 5V/1A |
Connector | USB 5V/1A | |
Certifications | CE、ROHS | |
Working environment | Operating Temperature | -10℃ - 50℃ |
Storage temperature | -20℃ - 60℃ | |
Operating humidity | Less than 95% (non-condensing) | |
Installation mode and accessories | Installation | Wall installation or floor installation |
Packing list | Camera x 1 Power adpterx1 Instruction manual x 1 Installation accessories packagex1 | |
Size | Length*Width*Height | 72*72*109mm |
Weight | Net weight | 161g |
The memory card is recognized but no video is recorded or the video is incomplete?
1. The memory card file format is wrong. If it cannot be formatted to FAT32 on the camera, it can be formatted on the computer. 2. The memory card's reading and writing speed affects the recording, resulting in abnormal recording. It is recommended to choose a TF/SD card with a reading and writing speed of Class 10 or above, otherwise it may cause the device's recording to be lost or stuck. 3. The recording mode is not selected correctly. Continuous recording or event recording can be selected.
The real-time video preview is abnormal - the video preview is stuck, delayed, or cannot be previewed？
1. If the network freezes or the device network signal is unstable, resulting in video playback freezes or delays, you can check the device WIFI/4G network signal value in the background or switch to SD mode and try again. 2. The network bandwidth is not enough. The real-time video preview of the device will occupy bandwidth. If multiple devices preview the video at the same time, the bandwidth will be insufficient.
No picture appears when the device is connected to the video surveillance software or NVR device？
1. The device does not have the Onvif function enabled. Please find the manufacturer to enable the Onvif function. 2. The device access monitoring software or NVR parameters are incorrect. The current default parameters for the company's camera to connect to the NVR are: username-admin password-123456 IP: can be seen in the device Onvif menu (usually a local IP address, in the WIFI router Below the gateway) Port: 8000 or 8899 (the port may be different for different customers) 3. The device video compression code is H.265, and the monitoring software or NVR does not support H.265.
The night vision function is not working properly and the IR-CUT switching is abnormal？
1. The illumination in the environment where the equipment is located does not meet the triggering requirements. 2. The correct night vision mode is not selected or the night vision mode function is not turned on, and the device cannot switch between infrared night vision or full color night vision. 3. The device’s night vision mode switches abnormally, please contact the manufacturer for resolution. 4. If the fill light or infrared light is always on when the device is powered on, please contact the manufacturer for resolution. 5. Confirm whether the device uses hard or soft photosensitivity, and confirm with the manufacturer whether it is a photosensitivity problem.
The AI functions of motion detection, sound detection, cry detection, motion tracking, and humanoid detection light are not triggered properly?
1. These functions are not added to the device or the main control does not support them. Please contact the manufacturer for resolution. 2. Low sensitivity causes normal triggering 3. The camera screen is blocked 4. The default interval between single-category alarm triggering and uploaded alarm notification is 1 minute. Repeated alarm triggering and notification messages will not be used 2 or more times within 1 minute.
There is noise in one-way and two-way intercoms?
1. There is audio input/output signal interference near the microphone/speaker. 2. There is a problem with the microphone/speaker hardware, please contact the manufacturer for resolution.
One-way and two-way intercom delay?
Detect whether there is delay/stuck in the network, such as PTZ rotation, real-time video, and video playback.
The camera has halos, strobes, etc?
1. The equipment testing environment has lights pointing directly at the camera. 2. Light refracts to the camera causing halo.
This product does not have an installation video
