1: 4 million 1/2.8-inch CMOS;
2: Camera resolution 2560H x 1440V;
3: HD dedicated lens 4mm/F1.6fixed;
4: IR-CUT automatic switching to achieve day and night monitoring;
5: 2 940mm infrared lights and 16 warm color atmosphere lights, support night lights, infrared distance: 8-10M;
6: Support digital wide dynamic, 3D noise reduction function;
7: H.265 video compression technology, high image quality, low bit rate;
8: Support mobile phone remote monitoring (iOS, Android);
9: Support 2.4G with Internet/900MHz with screen;
10: Support pan/tilt rotation(Pan/Tilt 350°/75°);
11: Support sound alarm, temperature and humidity alarm, motion event, crying alarm, feeding reminder;
12: Support two-way voice call;
14: Support remote playback on the screen, remote screen formatting TF card;
15: Built-in more than 7 lullabies;
16: Support 2MP/4MP when the camera is sold separately, and support 2MP when it is with display
17: Support cloud service;
18: Support third-party value-added services, optional (Alexa, Google);
19: Built-in temperature and humidity sensor, can detect temperature and humidity in real time;

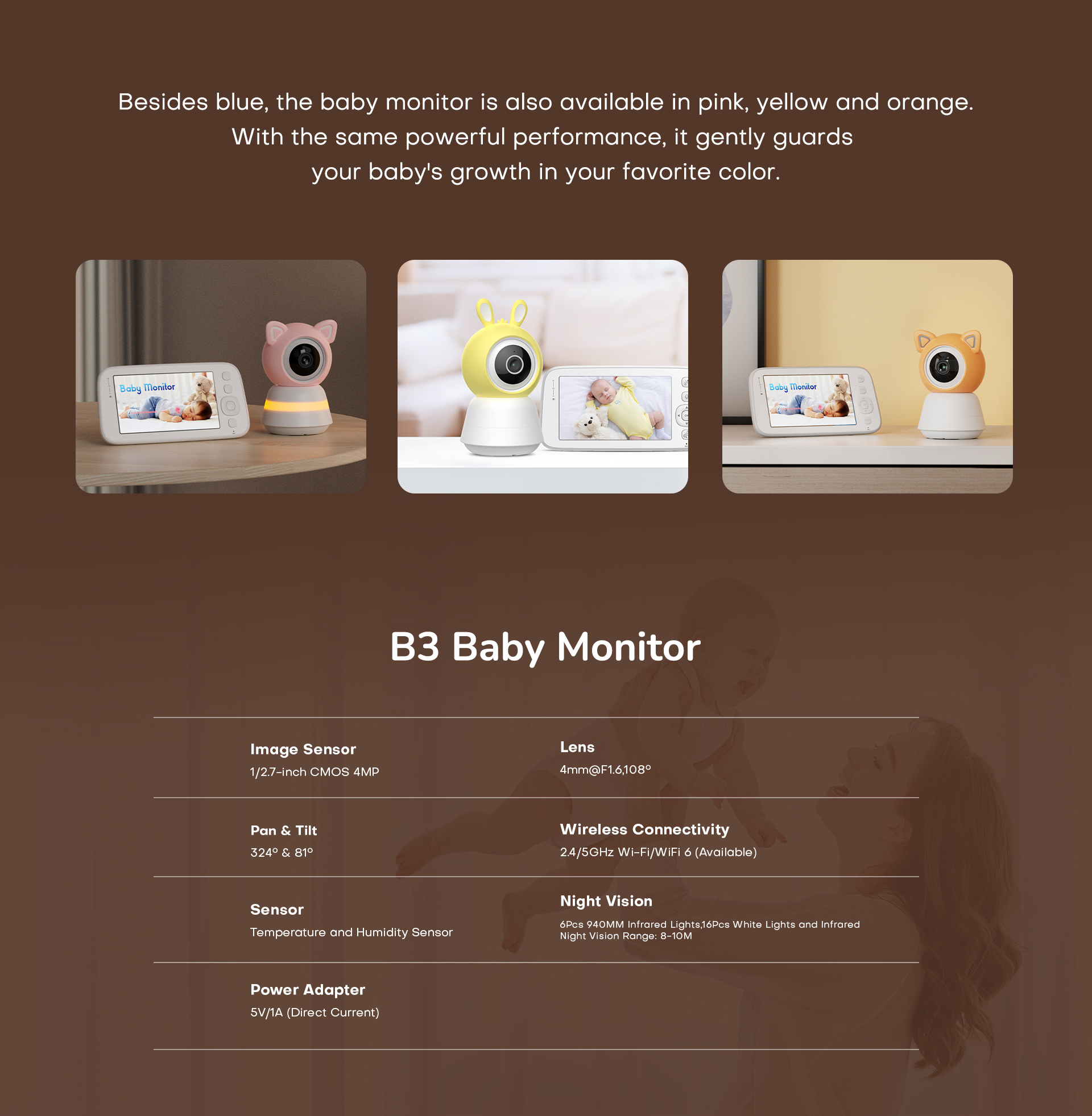

Components | Parameter | Specification |
CPU | SOC | Main frequency up to 1.5GHz |
Lens | CMOS size | 1/2.8-inch 400W CMOS |
Effective pixel | 2560H x 1440V(4MP) | |
Focal length | 4mm | |
Relative aperture | F1.6 | |
Interface type | M12*P0.5 | |
FOV | 108.7° | |
Lens layer | 1G3P | |
Night vision | Night vision distance | 8-10m |
IR-CUT | Support | |
Photosensitive mode | Sensor metering | |
IR&White light | 2x 940nm IR LEDs&16pcs warm white ambient LEDs | |
Standard | IEEE 802.11 b/g/n/ax 2.4G WIFI&BLE v5.0 | |
Distance | 60-80m(No barriers) | |
SPK | SPK function | Support (93±3dB) |
Microphone | Sensitivity | -36dB±2dB |
SNR | ≥58dB | |
Storage mode | Cloud storage | Support |
TF card storage | Support TF card,up to 256G | |
Interface | Reset button | Support |
Wire network port interface | / | |
Power interface | Type-C 5V | |
Adapter | Output | DC 5V |
Certification | CCC,ROHS | |
Accessories package | Accessories | Adapterx1,Camerax1,User manual x1,Installation accessories package x1,Installation Bracket x1,Waranty cardx1 |
General | Working temperature | -10℃-50℃ |
Storage temperature | -20℃-60℃ | |
Working humidity | Less than 95%(Non-condensation) | |
Installation | Installation mode | Wall-mounted |
