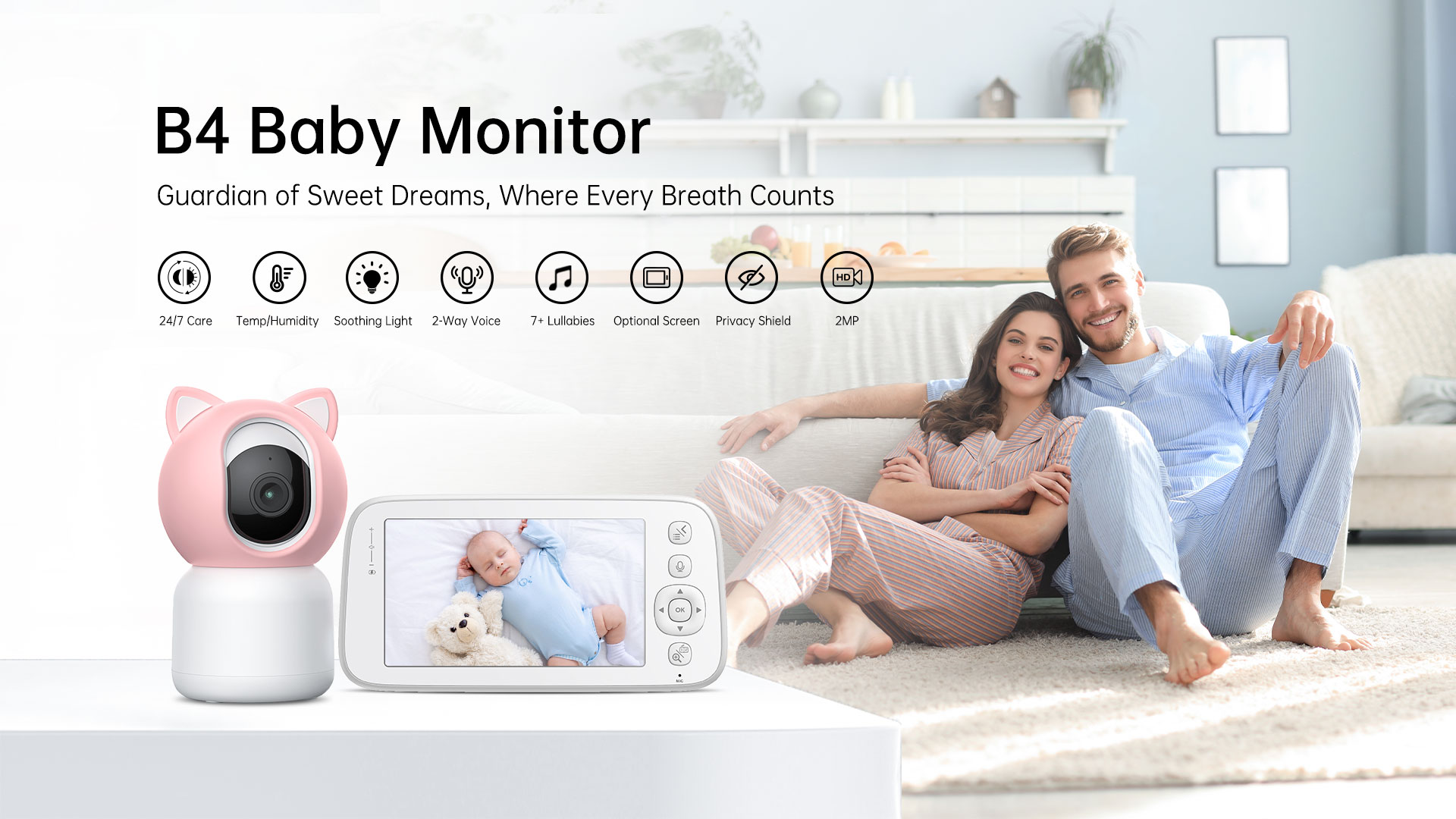

Product Overview:

1: 4 million 1/2.8-inch CMOS;

2: Camera resolution 2560H x 1440V;

3: HD dedicated lens  4mm/F1.6 fixed;

4: IR-CUT automatic switching to achieve day and night monitoring;

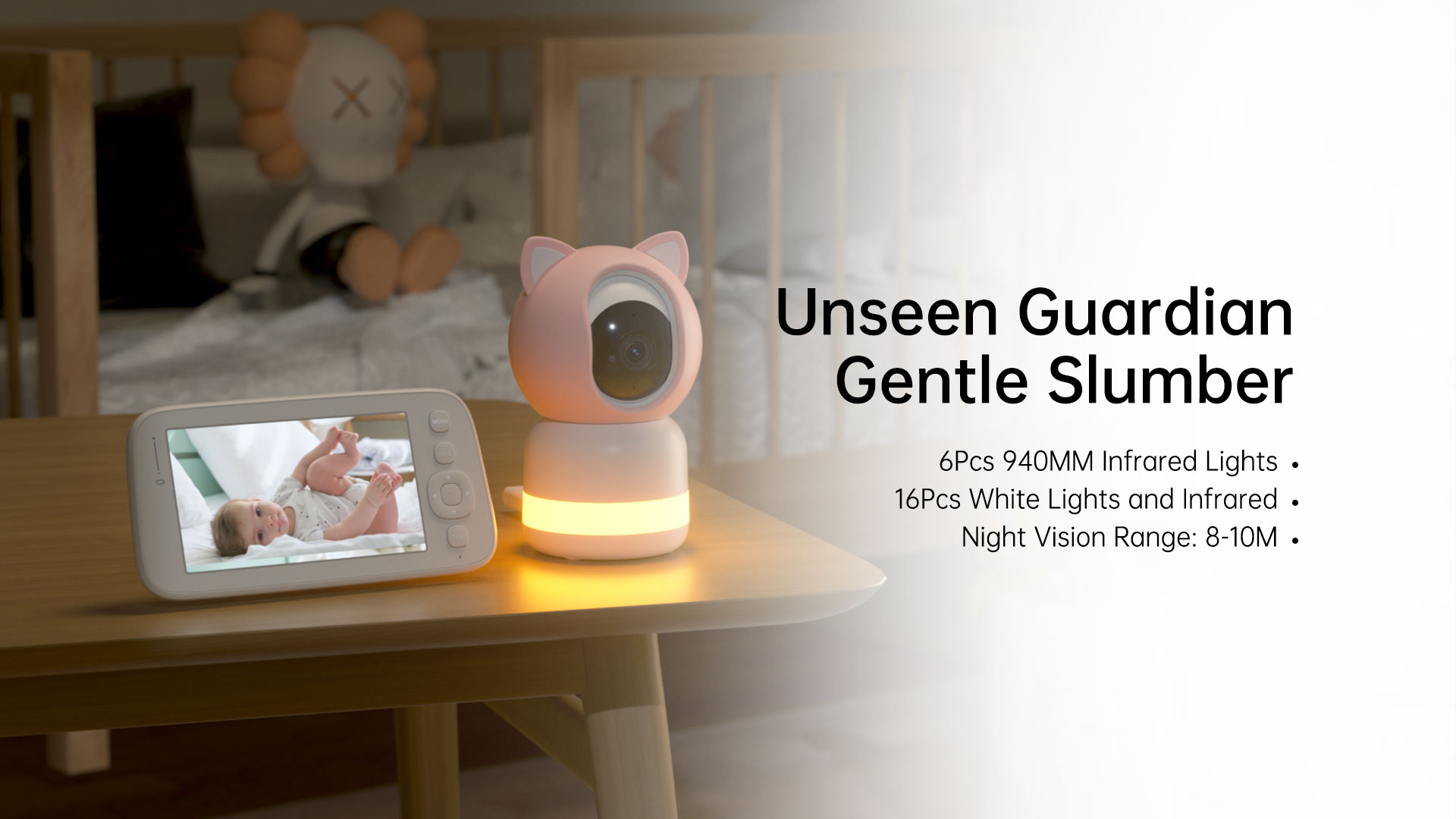

5: 6pcs 940mm infrared lights and 16pcs warm color atmosphere lights, support night lights, infrared distance: 8-10M;

6: Support digital wide dynamic, 3D noise reduction function;

7: H.265 video compression technology, high image quality, low bit rate;

8: Support mobile phone remote monitoring (iOS, Android);

9: Support 2.4G with Internet/900MHz with screen;

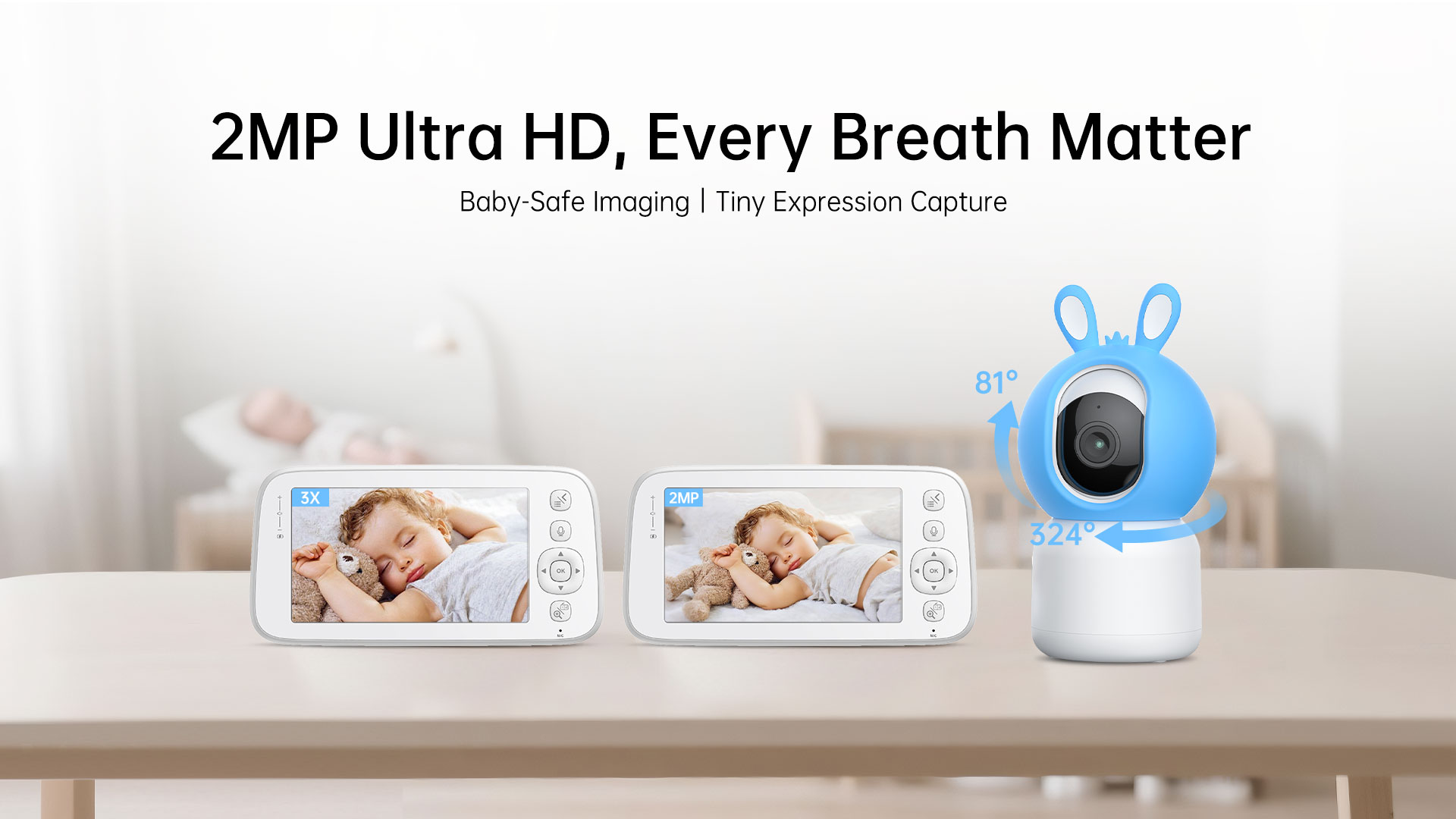

10: Support pan/tilt rotation(Pan/Tilt 350°/81°);

11: Support sound alarm, temperature and humidity alarm, motion event, crying alarm, feeding reminder;

12: Support two-way voice call;

13: Support remote playback on the screen, remote screen formatting TF card;

14: Built-in more than 7 lullabies;

15: Support 2MP/4MP when the camera is sold separately, and support 2MP when it is with display

16: Support cloud service;

17: Support third-party value-added services, optional (Alexa, Google);

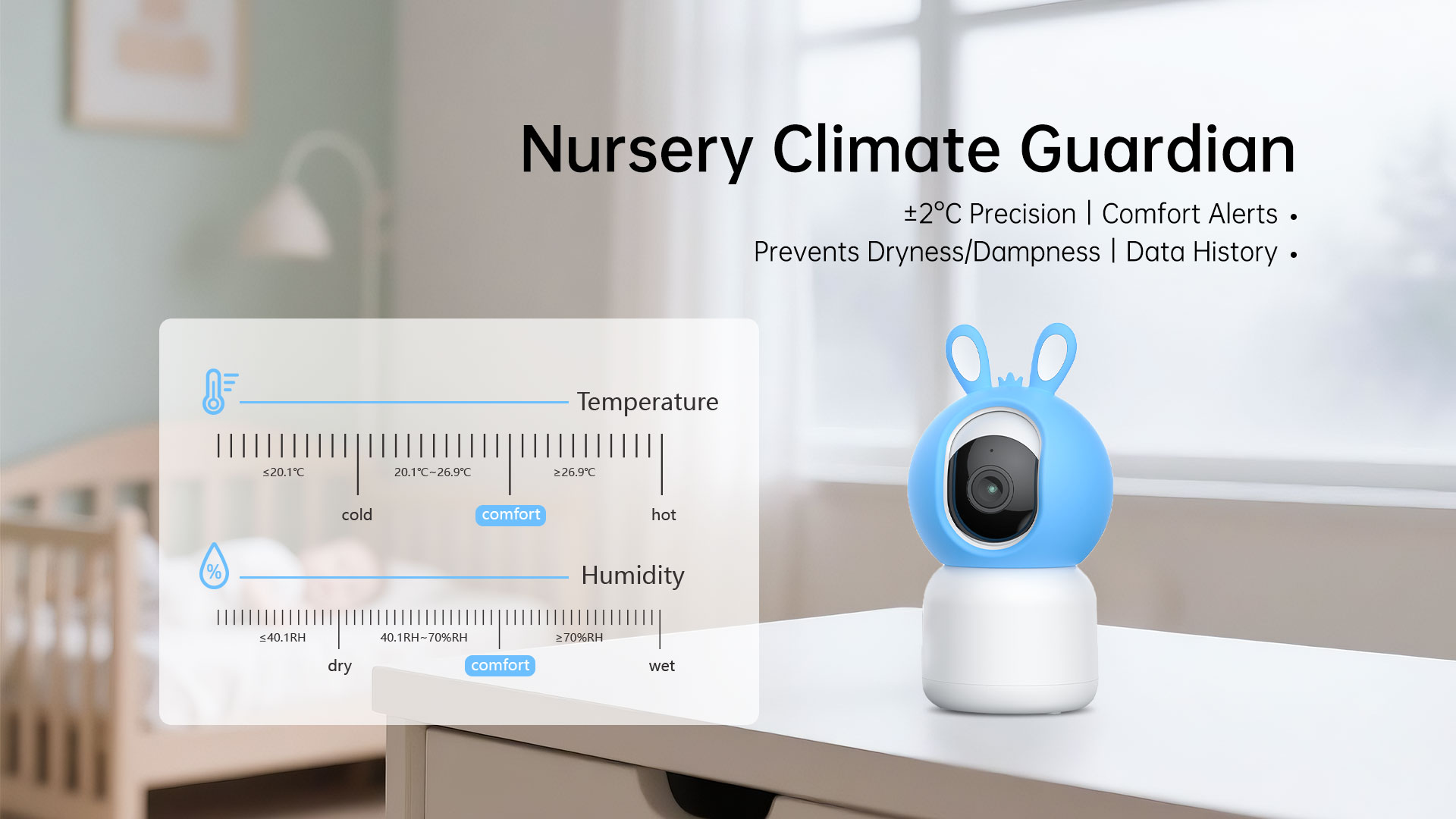

18: Built-in temperature and humidity sensor, can detect temperature and humidity in real time;


Components

Parameter

Specification

CPU scheme

SOC

Main frequency up to 1.5GHz

Lens

CMOS size

1/2.8-inch 400W CMOS

Effective pixel

2560H x 1440V(4MP)

Focal length

4mm

Relative aperture

F1.6

Interface type

M12*P0.5

FOV

108.7°

Lens layer

1G3P

Night vision

Night vision distance

8-10m

IR-CUT

Support

Photosensitive mode

Sensor metering

IR&White light

6pcs 940nm IR LEDs&16pcs warm white ambient LEDs

Standard

IEEE 802.11 b/g/n/ax 2.4G WIFI&BLE v5.0

Distance

60-80m(No barriers)

SPK

SPK function

Support (93±3dB)

Microphone

Sensitivity

-36dB±2dB

SNR

≥58dB

Storage mode

Cloud storage

Support

TF card storage

Support TF card,up to 256G

Interface

Reset button

Support

Wire network port interface

/

Power interface

Type-C 5V

Adapter

Output

DC 5V

Certification

CCC,ROHS

Accessories package

Accessories

Adapterx1,Camerax1,User manual x1,Installation accessories package x1,Installation Bracket x1,Waranty cardx1

General

Working temperature

-10℃-50℃

Storage temperature

-20℃-60℃

Working humidity

Less than 95%(Non-condensation)

Installation

Installation mode

Tabletop or wall-mounted
