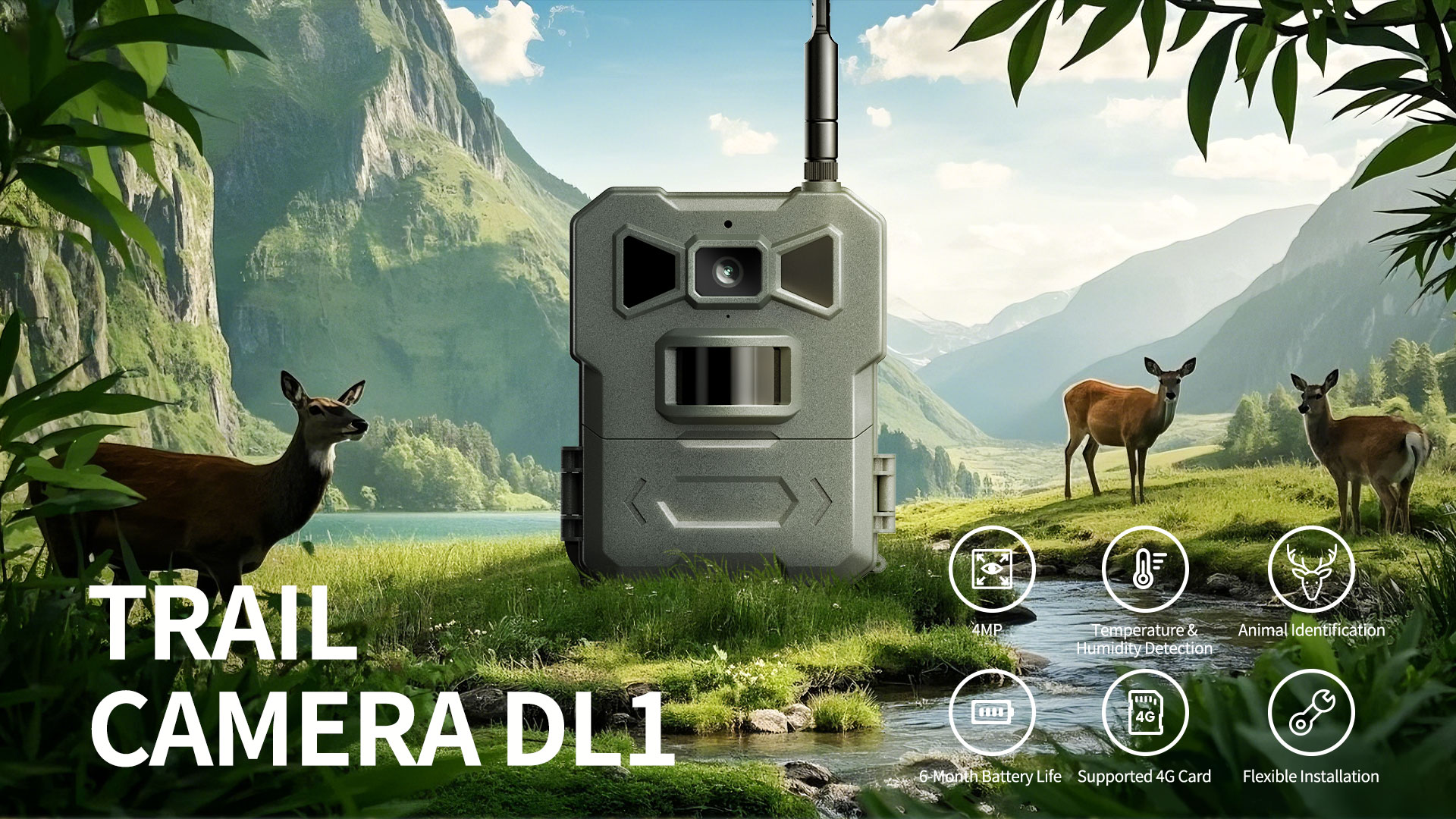

Trail Camera DL1
Product Overview：
1: 4 million 1/2.9-inch CMOS 4M pixels;
2: Full HD 2560*1440 resolution;
3: HD dedicated 1.0 black light lens 4mm fixed;
4: Black light full-color mode to achieve day and night monitoring;
5: Built-in temperature and humidity sensor, real-time monitoring of outdoor temperature;
6: Support digital WDR, 3D noise reduction function;
7: H.265 video compression technology, high image quality, low bit rate;
8: Support mobile phone remote monitoring (iOS, Android);

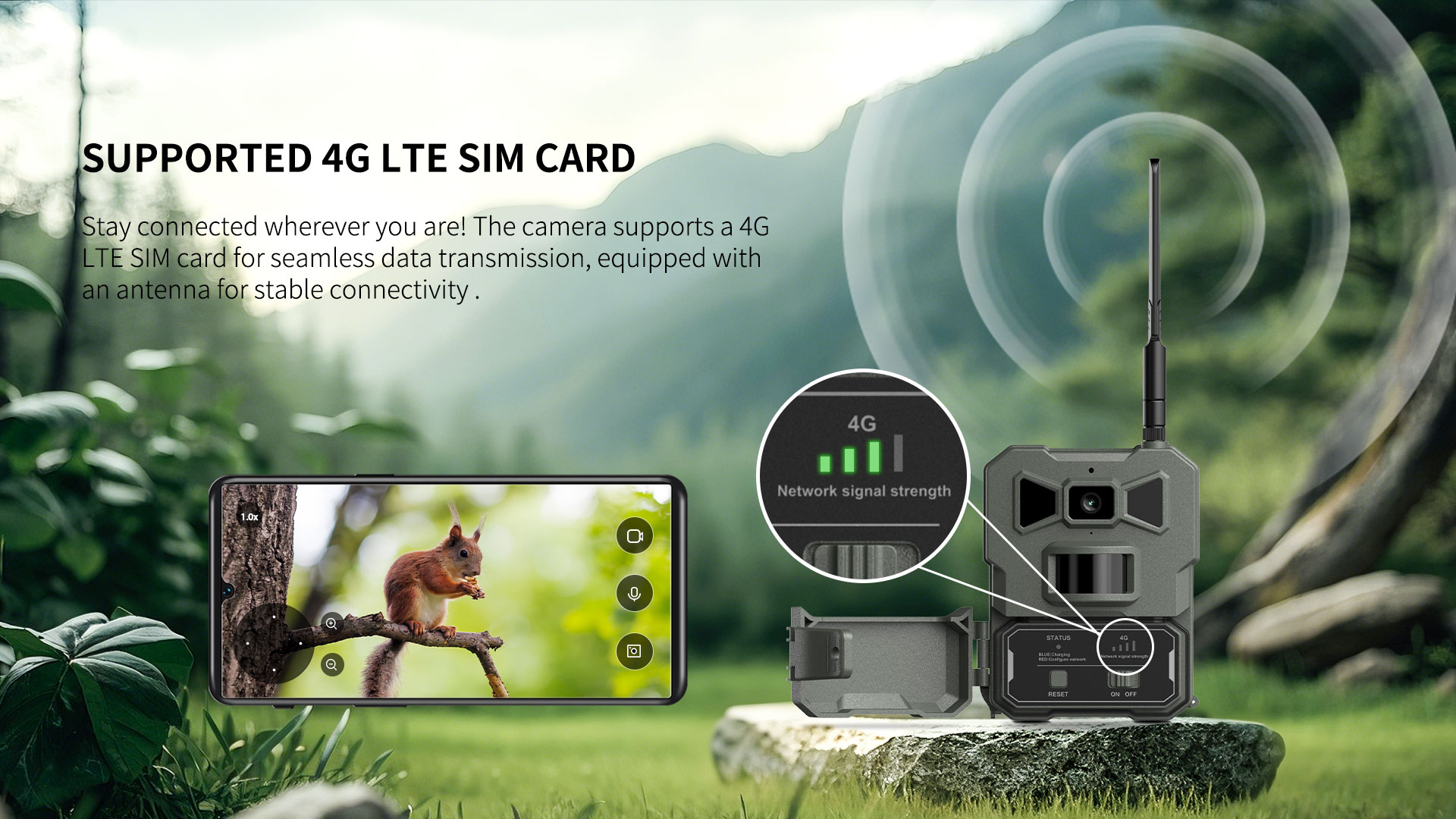

9: High-performance 4G module; Respond to a variety of non-network environments

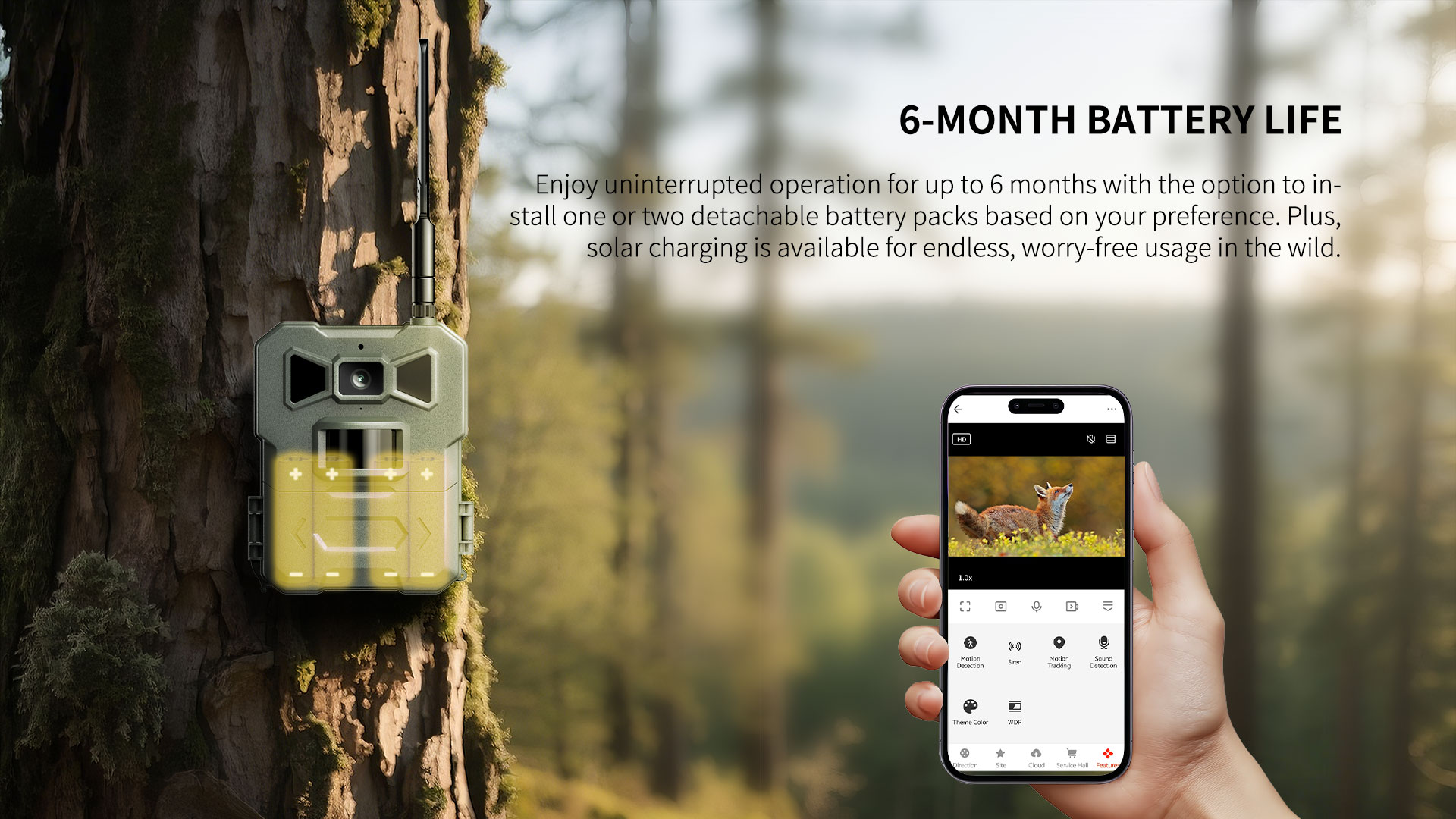

10: Built-in 1 set of 5200mAh removable battery,
11: High precision PIR human movement detection alarm, filter false alarms, sensitivity adjustable (15-20 meters)

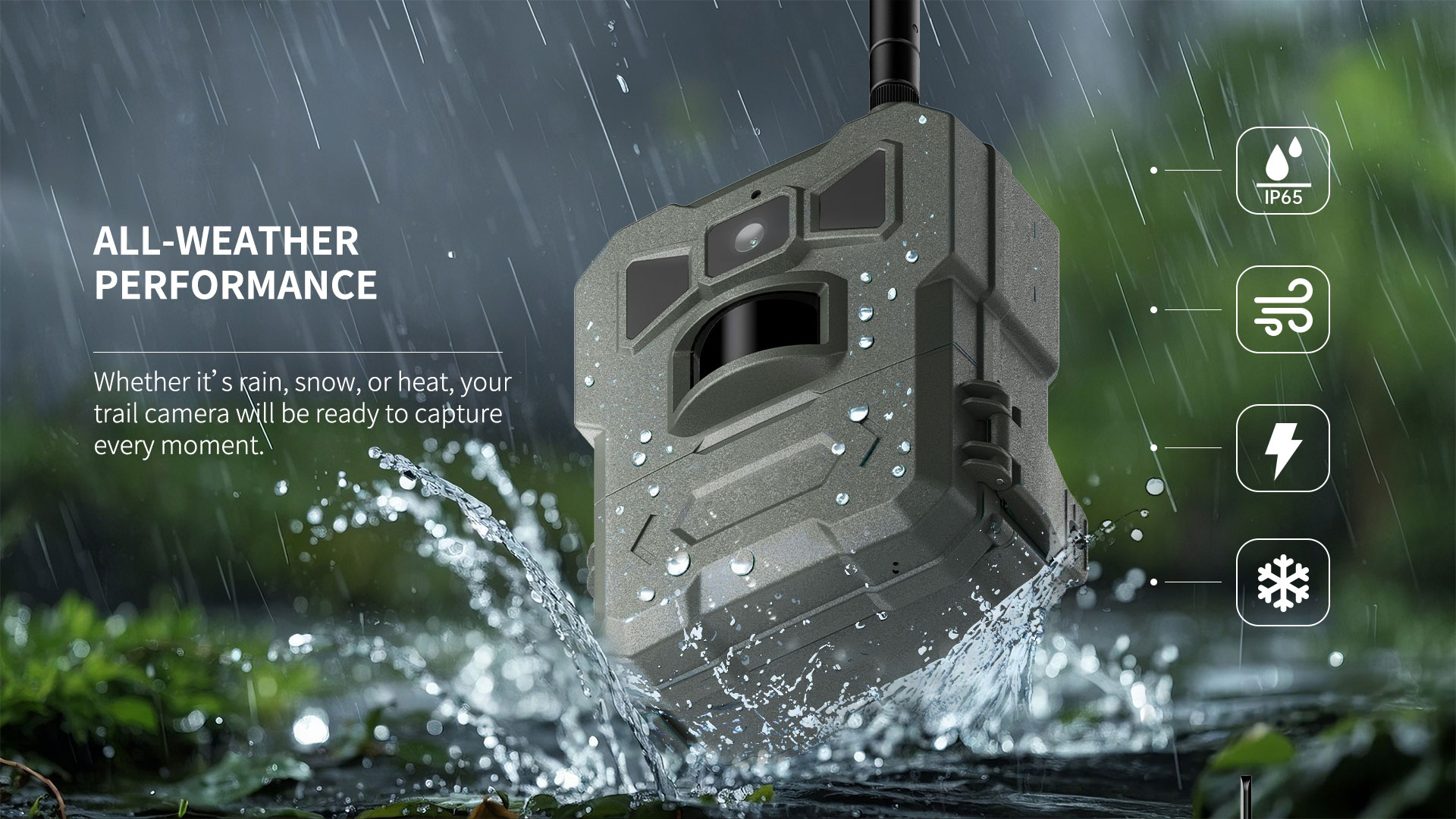

12: IP65 protection level
13: Optional solar charging panel

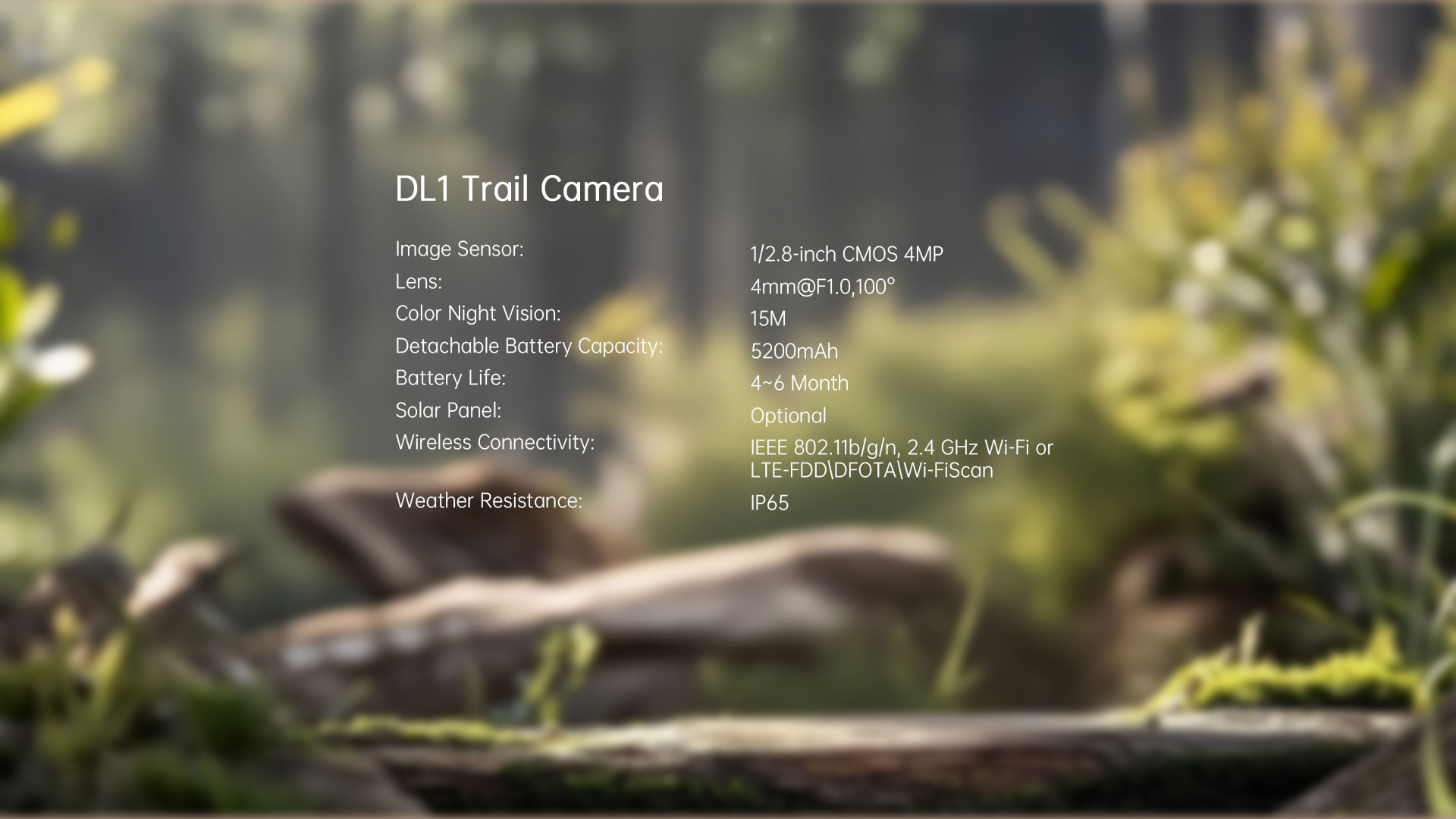

| IMAGE SENSOR | CMOS | 1/2.9”Progressive Scan Black Light Sensor CMOS |
| Lens | Lens | Focal Length 4mm |
| Aperture | F1.0 | |
| Field of View | 100°(Diagonal) | |
| NIGHT VISION | Infrared Night Vision | 2x 850nm IR LED(8-10m) |
| Full-Color Night Vision | / | |
| INTERFACE&BUTTON | Power button and slot | 1xReset Button 1xMicroSD card Slot(Up to 256GB) 1xPower interface(USB 5V/2A) 1x Power Switch Button |
| VIDEO&AUDIO | Maximum Resolution | 2K 4MP 2560*1440 |
| Frame rate | Maximum 20fps | |
| Video Compression | H.265 | |
| Image Enhancement | 3D DNR | |
| Live View | YES | |
| WDR | DWDR | |
| Audio iput&Output | YES | |
| Audio communication | / | |
| Micophones Sensitivity | -33±2dB | |
| SPK Output SPL | / | |
| STORAGE | Local storage | MicroSD card slot on camera(Up to 256GB) |
| Cloud storage | YES | |
| Functions | AI detection | Motion detection,Voice detection,PIR detection(15-20m),AI animal recognize |
| Video/Audio | Event recording,Record playback and download | |
| Others | Auto IR-CUT,Low power consumption,Black light night vision,Temperature&Humidity detection | |
| NETWORK | 4G Connectivity | LTE-FDDDFOTAWi-FiScanUSIMcard detection EG800G(B1/3/5/7/8/20/28)-Europe Module |
| SECURITY | 128-bits AES Encryption | YES |
| POWER | Power Source | Built-in 1/2x5200mAh rechargeable lithium battery,battery life 2-3/4-6 Month |
| Power Input | USB 5V/2A | |
| Solar panel | Optional | |
| GENERAL | Smart Intergration | Amazon Alexa,Google Assistant |
| Weather Resistance | IP65 | |
| System Requirements | Andriod 5.0 or higher,IOS 11.0 or higher | |
| Operating Temperature | -10℃ - 55℃ | |
| Storage Temperature | -20℃ - 60℃ | |
| Storage Humidity | ≤95%(Non-condensing) | |
| Camera Demenision | / | |
| Weather Resistance | IP65 | |
| Package Content | Camera x1,Power x1,3M long straps x1, User Manual x1 | |

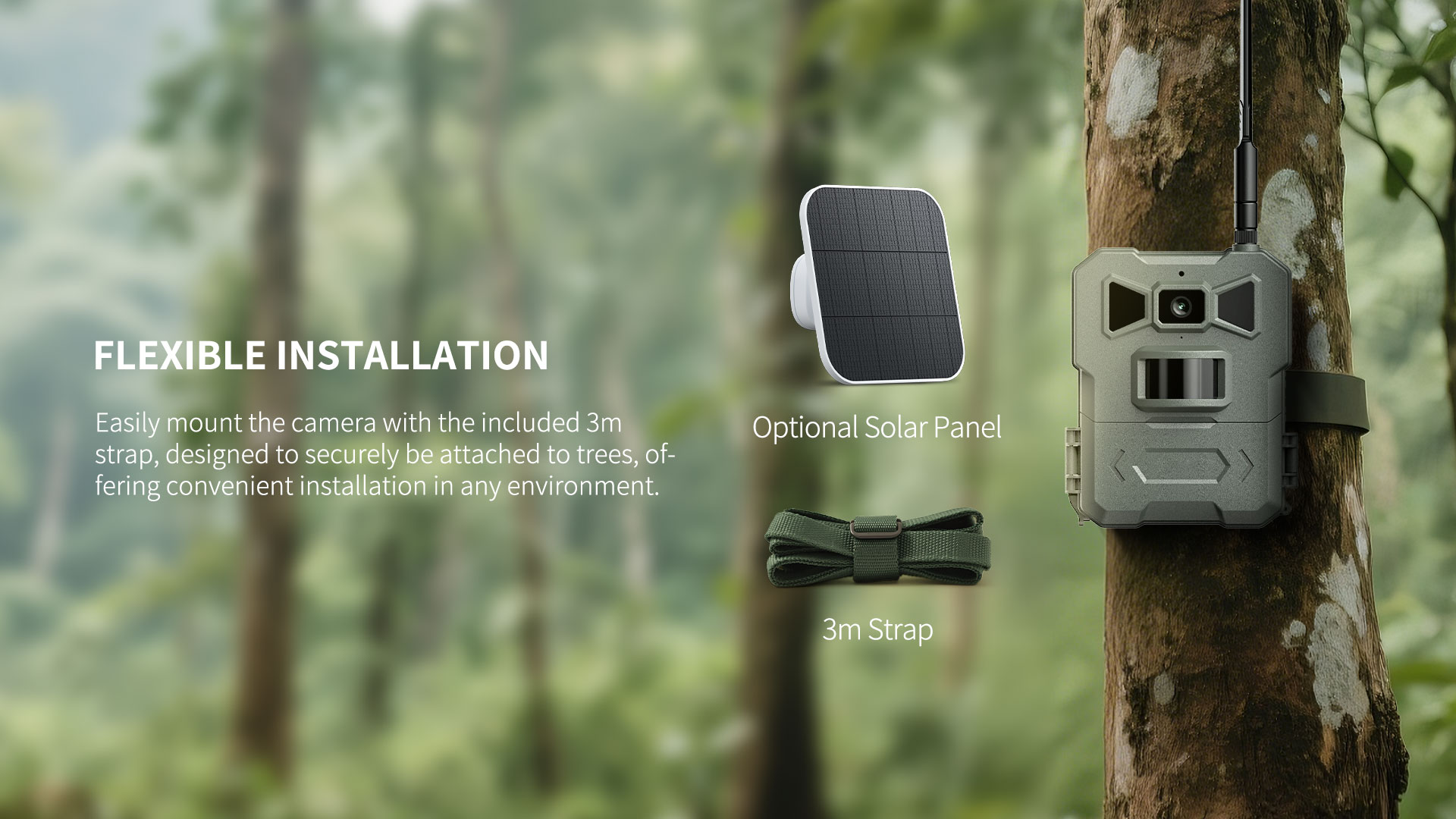

| INSTALLATION | Mounting Options | Tree-Mounted |
| CERTIFICATION | Certifications |
