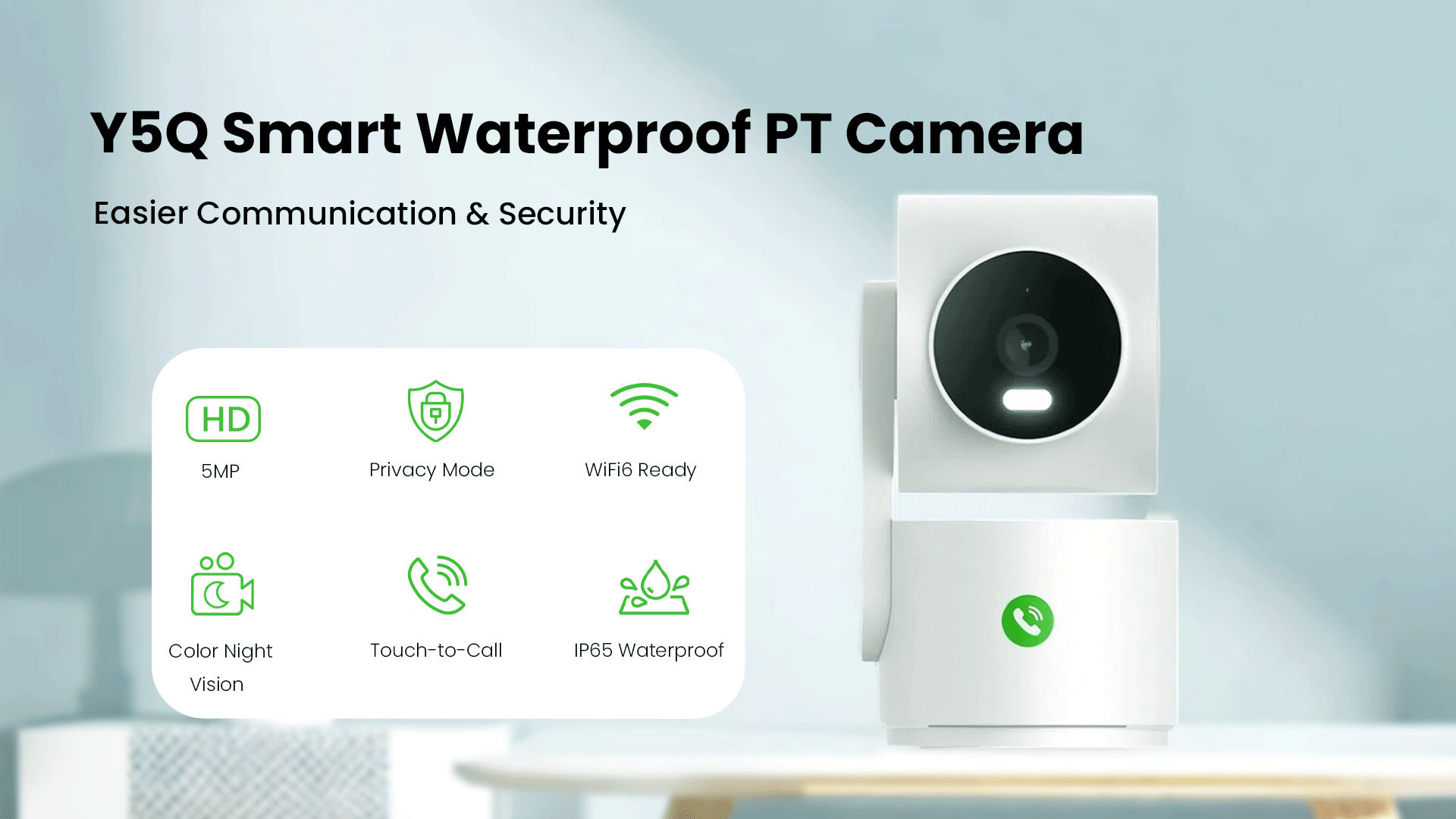

Smart Waterproof PT Camera Y5Q
Product Overview：
1: 5 million; 1/3-inch CMOS;
2: Full HD resolution of 2880*1620;
3: 4mm fixed high-definition dedicated lens;
4: Automatic IR-CUT switching for day and night monitoring;
5: 2 infrared lamps of 850mm, infrared range: 8-10M;
6: 2 white light lamps, color temperature 15000K;
7: Digital wide dynamic range, 3D noise reduction function;
8: H.264 video compression technology, high quality, low bit rate
9: Supports mobile remote monitoring (iOS, Android);
10: Companion cloud service;
11: Supports third-party value-added services, optional (Alexa, Google);

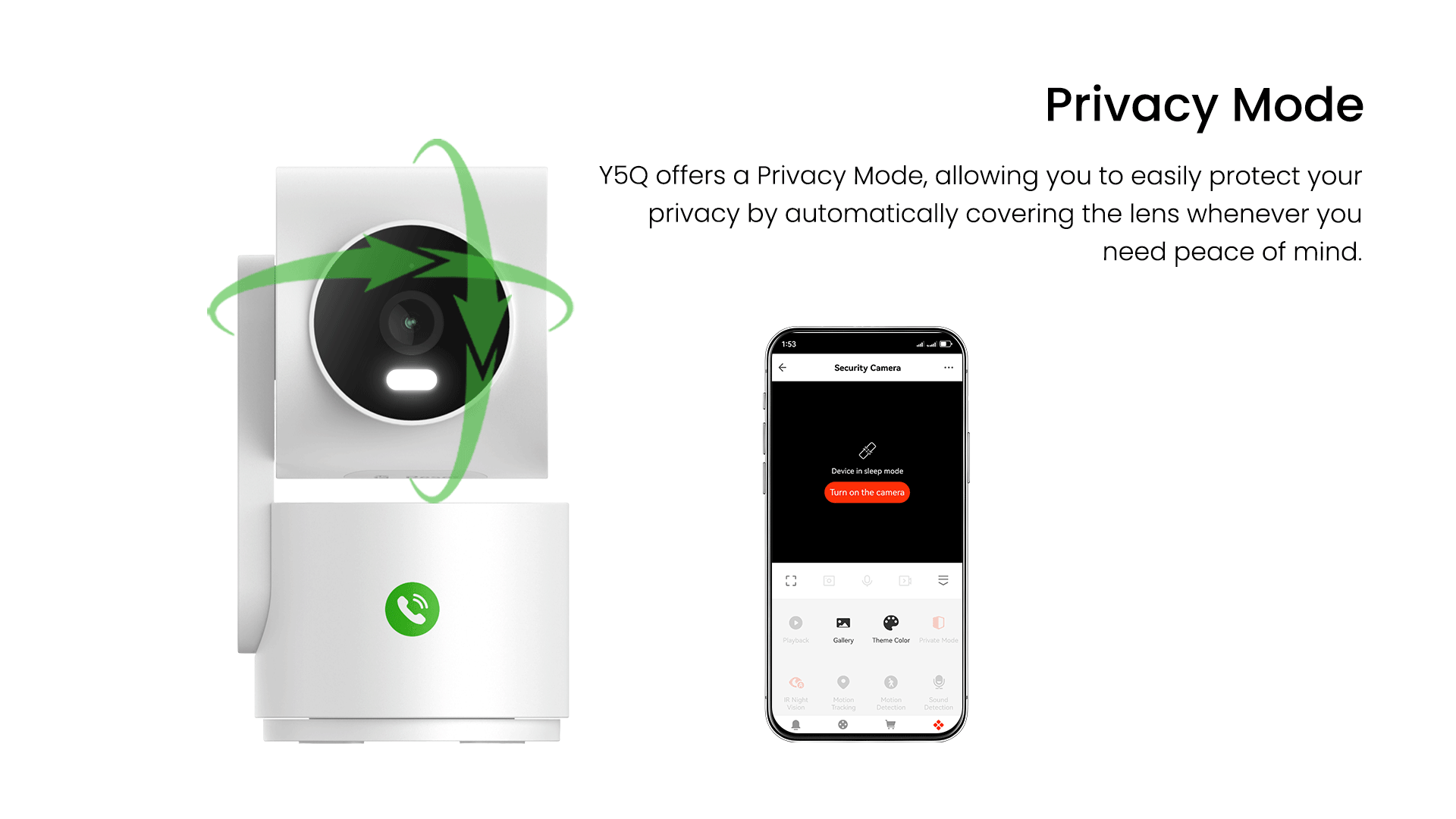

12: Visible PTZ, supports physical privacy shielding;
13: Supports one-click call wake-up function;

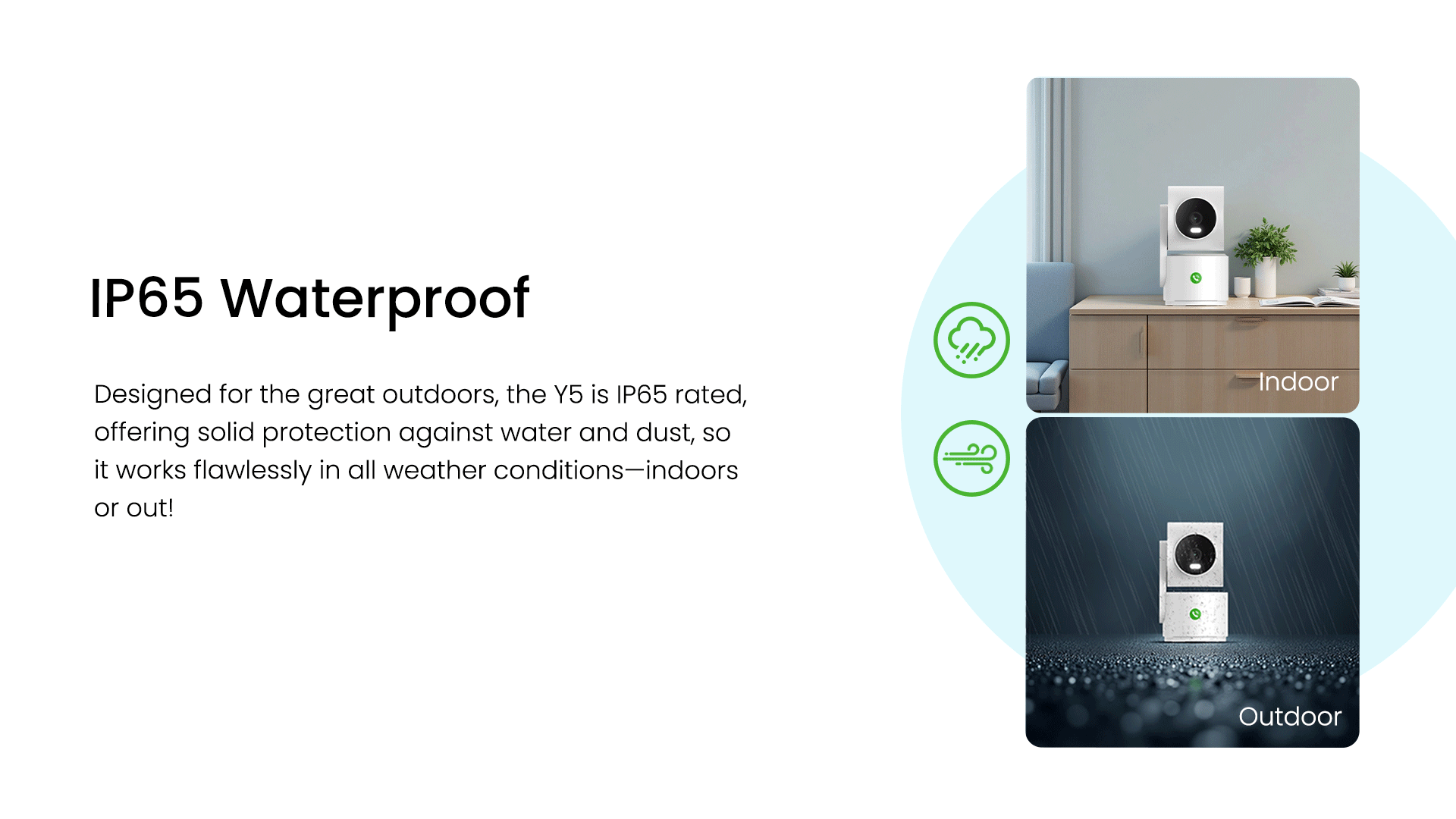

14: Supports IP65 waterproof;

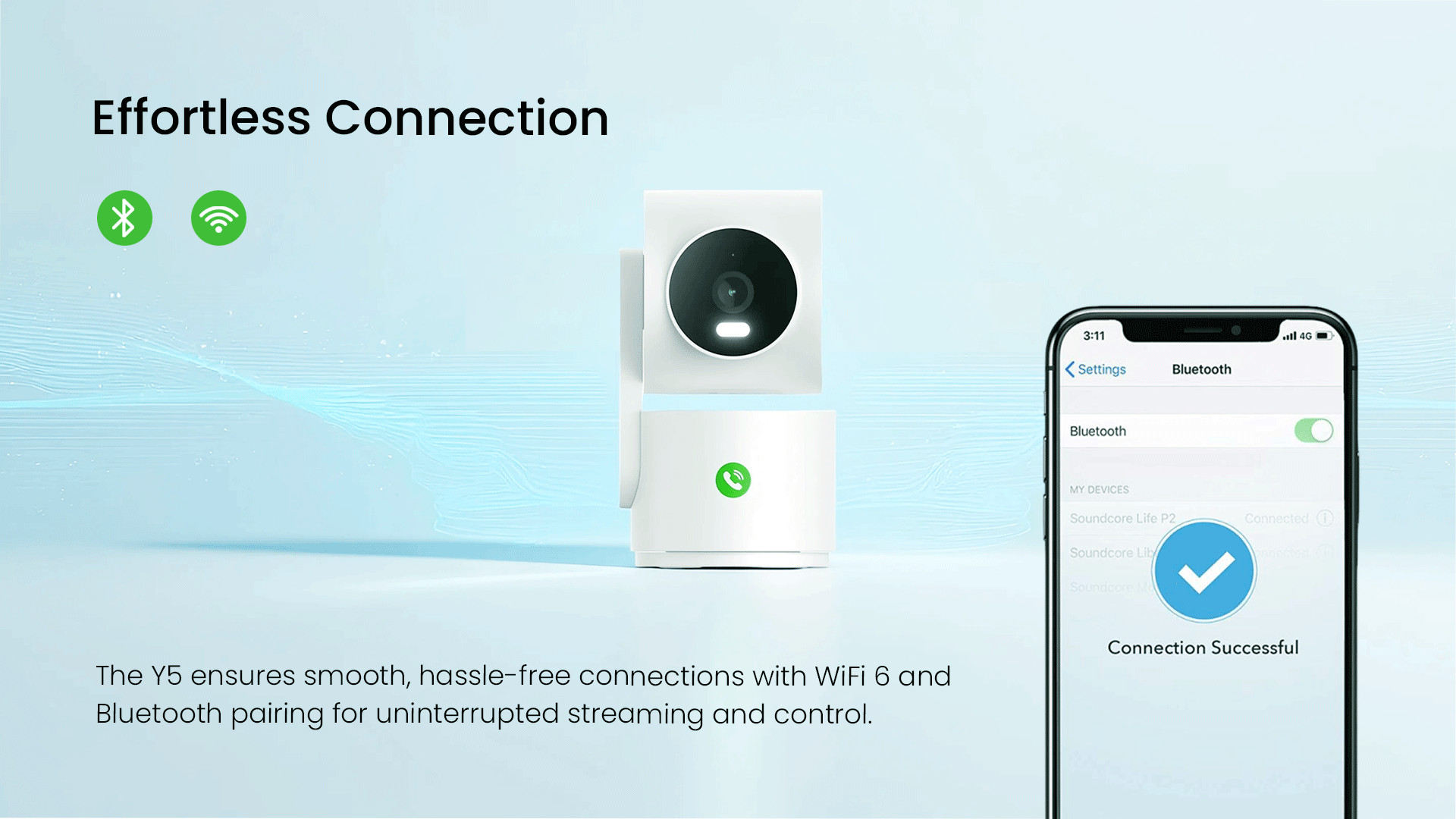

15: WiFi6 technology: supports the highest 9.6Gbps transmission rate, interference resistance improved by 3 times, ensures smooth transmission of high-definition video, reduces lag or disconnection problems.
parameter | specification | |
CPU solution | Specification | T32LQ |
Sensor imaging unit | Model | SC4336P |
CMOS size | 1/3-inch CMOS | |
Video | Effective pixels | 2880*1620 |
Lens parameters | Model | LK96-6000 |
Focal length | 3.83mm±5% | |
Relative aperture (aperture) | F1.6±5% | |
Interface type | M12*0.5 | |
FOV (field of view) | 108° | |
Resolution | 5MP | |
Lens layer count | 1G3P | |
Night vision | Night vision distance | 8-10 m |
Shutter mode | Sensor metering | |
IR-CUT | Supported | |
IR Light | 2 x 850nm infrared lamps | |
white light | 2 x lamps | |
Wi-Fi | Model | 6062C |
Standard | IEEE 802.11b/g/n/ax | |
Distance | 100M (without obstruction) | |
loudspeaker | Speaker function | Supported |
Rotation angle | Mechanical angle | 135° 350° |
Microphone | Sensitivity | -36dB ± 2dB |
Signal-to-noise ratio | ≥58dB | |
Storage method | Cloud storage | Supported |
TF card storage | Supported TF card, maximum 256G | |
Interface | Reset button | Supported |
Power interface | TYPE-C | |
Wired network interface | / | |
Power adapter | Output | 5V1A |
Interface | USB | |
Certifications | CE 、ROHS、FCC、UL | |
Accessories | Expansion screw kit | Supported |
Warranty card、manual、 bracket | Supported | |
General | Working temperature | -10℃ - 50℃ |
Storage temperature | -20℃ - 60℃ | |
Working humidity | Less than 95% (no condensation) | |
Other requirements | Installation method | Desktop, supports wall-mounted installation |
Packaging list | Power adapter x1 power cord x1 camera x1 manual x1 accessory package x1 bracket x1 |
