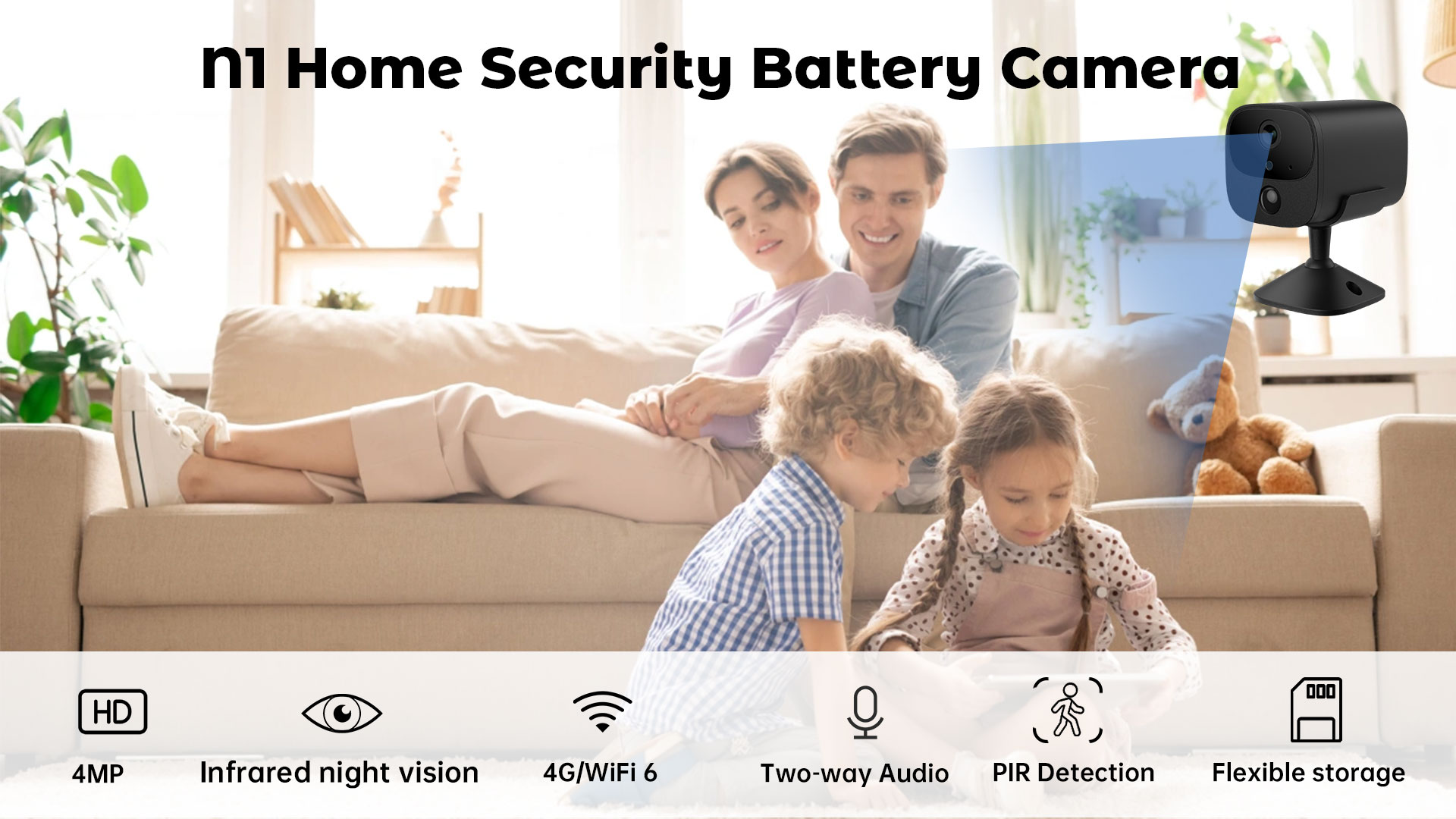

N1 Security Battery Camera
Product Overview：
1：4 million 1/2.8-inch CMOS;
2：Full HD 2560H x 1440V resolution;
3：HD Special Lens 3mm/M8 Lens;
4：2pcs 850nm IR LEDs,support IR night vision;
5：Support PIR detection,humanoid detection,4G/WIFI6 optional;
6：Supports digital wide dynamic range and 3D noise reduction feature;
7：H.265 video compression technology, high quality, low bitrate;
8：Supports remote monitoring on mobile (iOS, Android);

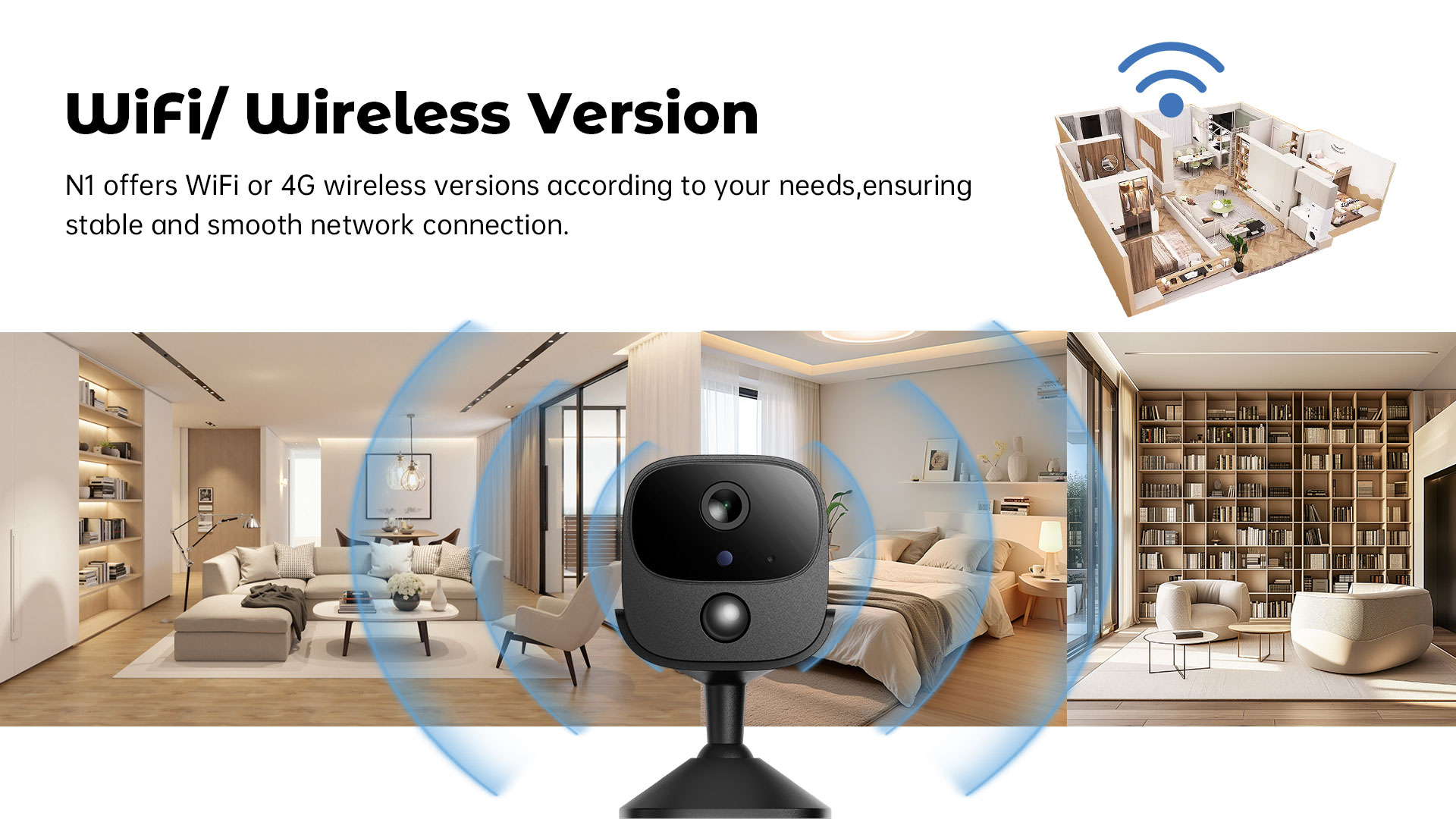

9：Supports 2.4G WIFI6 and Bluetooth pairing;
10：Supporting cloud services;
11：Supports third-party value-added services, optional (Alexa, Google);
Subassembly | Parameters | Specification |
CPU | Specification | T31ZL |
Image sensor | Model | SC3336 |
CMOS size | 1/2.8-inch 400W CMOS | |
Effetive pixel | 2560H x 1440V（4MP） | |
Lens | Model | JX6408-M8 |
Focal length | 3mm | |
Relative aperture | F2.75±5% | |
Interface type | M12*P0.5 | |
FOV | 142° | |
Layers | 1G3P | |
Night vision | Image effect | IR night vision |
Photosensitivity mode | Photodiodes | |
WIFI | Model | ATBM6461 |
Standard | IEEE 802.11 b/g/n/ax 2.4G WIFI&BLE v5.0 | |
Distance | 60-70m(No barriers) | |
SPK | SPK sensitivity | Support(1W,8Ω impedance,97±3dB) |
Microphone | Sensitivity | -36dB± 2dB |
SNR | ≥58dB | |

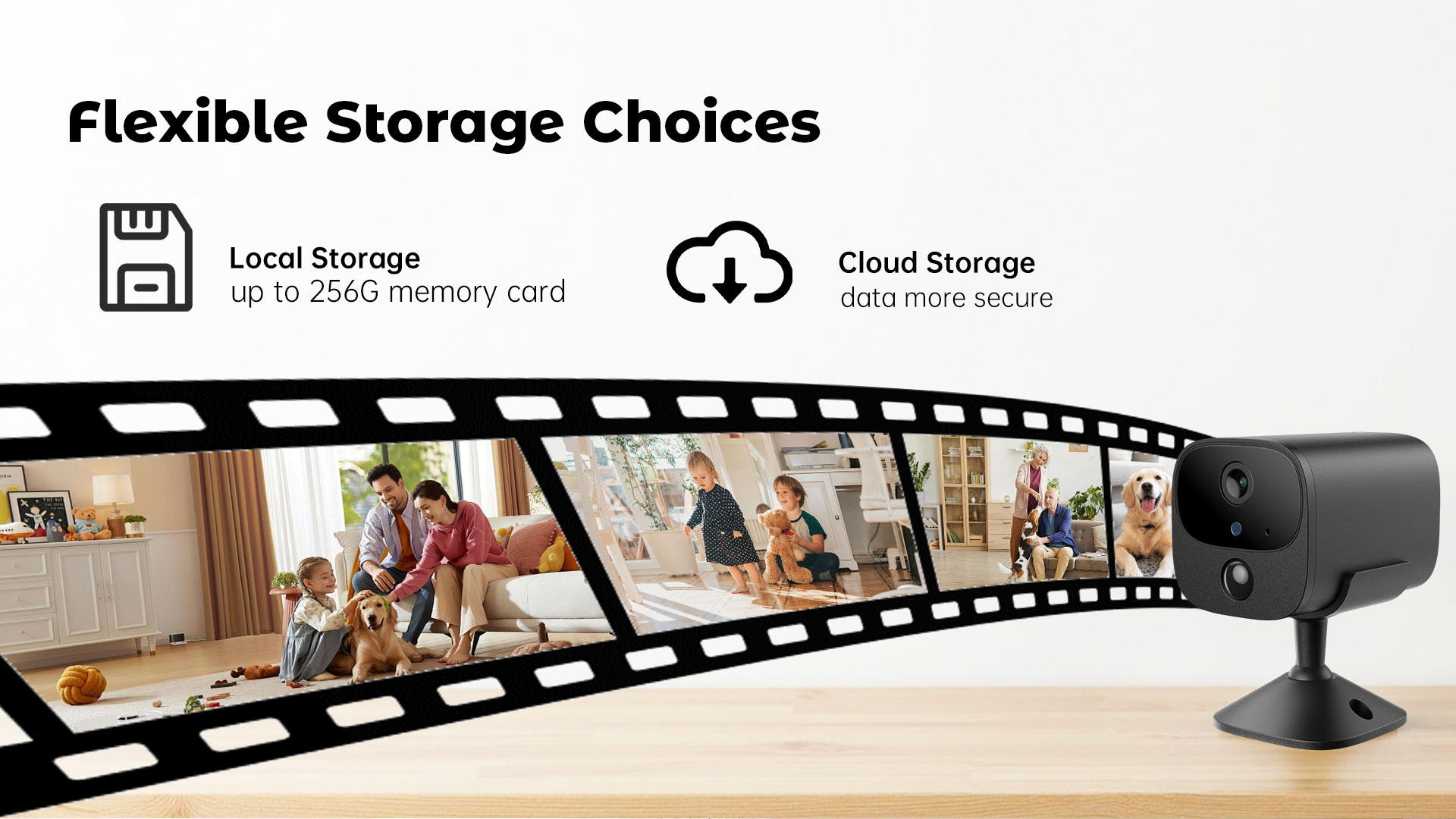

Storage mode | Cloud storage | Support |
TF card storage | Support TF card,up to 256G | |
Interface | Reset button | Support |
Power interface | Type-C | |
Power adapter | Output | DC 5V/1A |
Interface | USB 5V/1A | |
Certification | CCC,ROHS,FCC | |
Power | Battery | Built-in 1720mAh/3.7V rechargeable lithium battery |
General | Working temperature | -10℃ - 50℃ |
Storage temperature | -20℃ -60℃ | |
Working humidity | Less than 95%（Non-condensation） | |
Others | Installation mode | Wall-mounted or Tabletop |
Package list | Warranty cardx1 User manual x1 Power adapter x1 Camera x1 Installation accessories package x1 |
