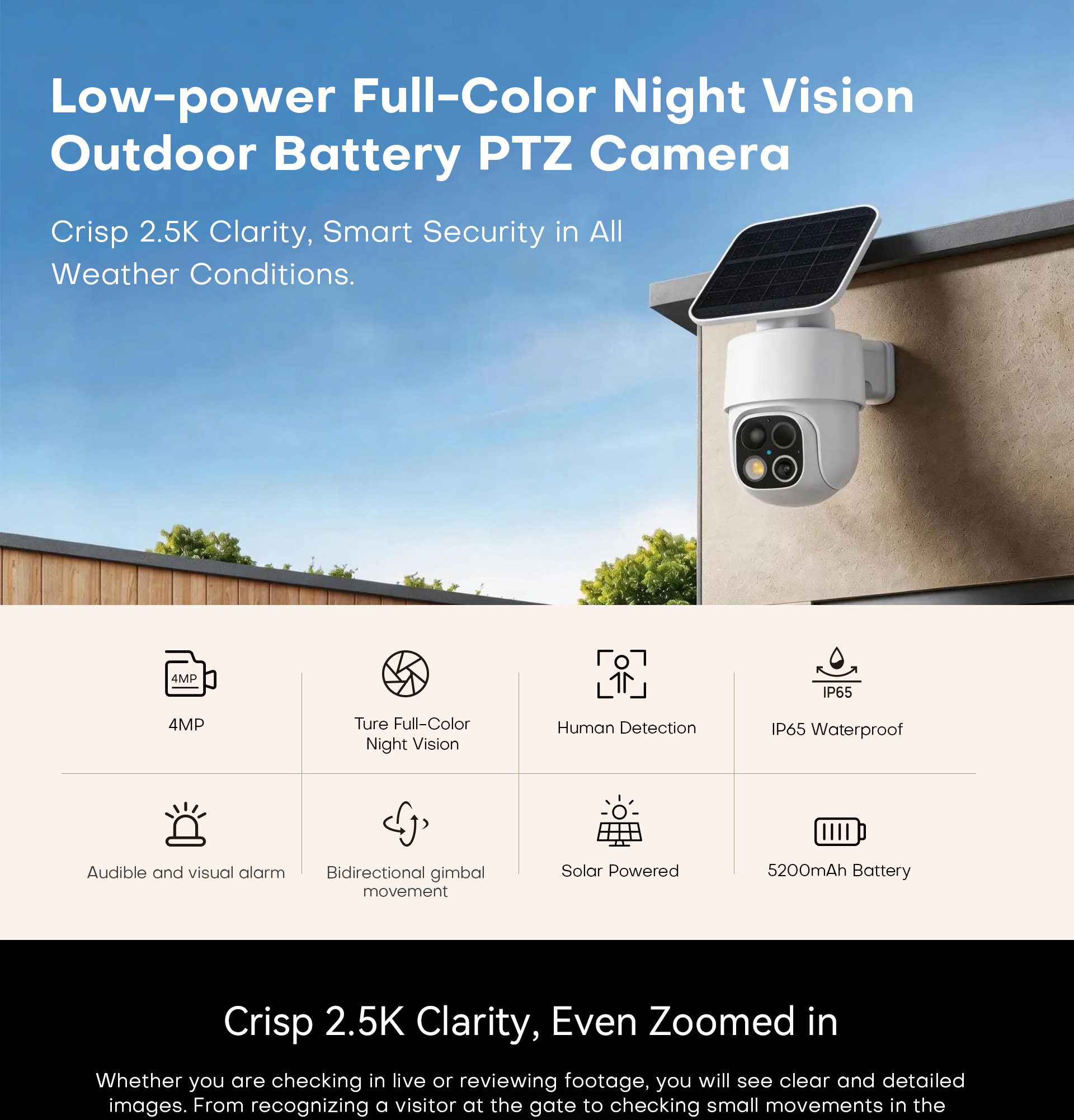

P8 Low Power PTZ Camera
Product Overview：
1: 1/2.8-inch CMOS;

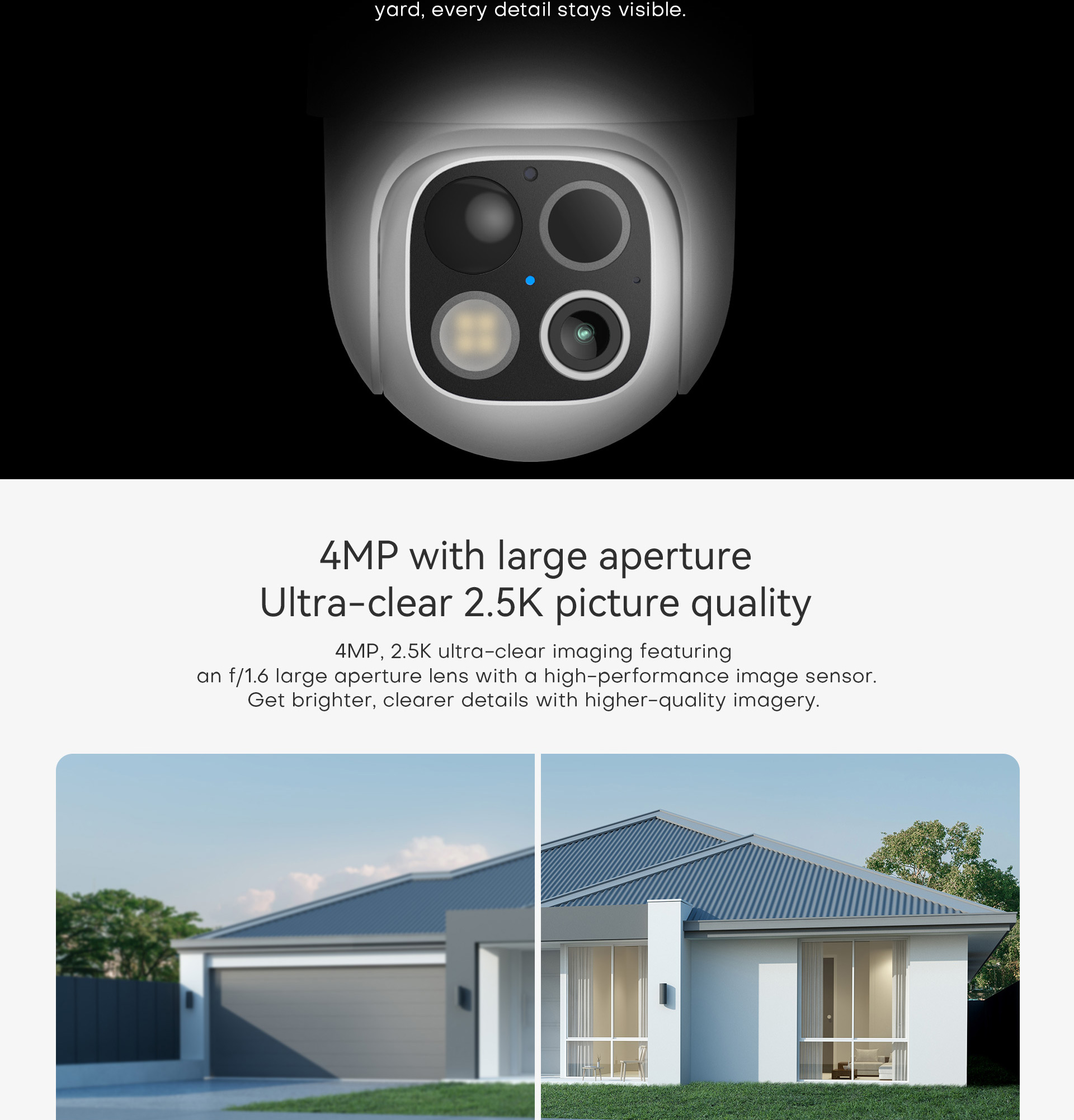

2: Full HD 2560*1440 resolution;
3: Fixed lens 3.8mm;
4: Support 2.4GHz WiFi 6 & Bluetootch ;
5: Dual light: 1 x 850nm IR LEDs, 4x white light;
6: Night vision distance up to 8-10M;

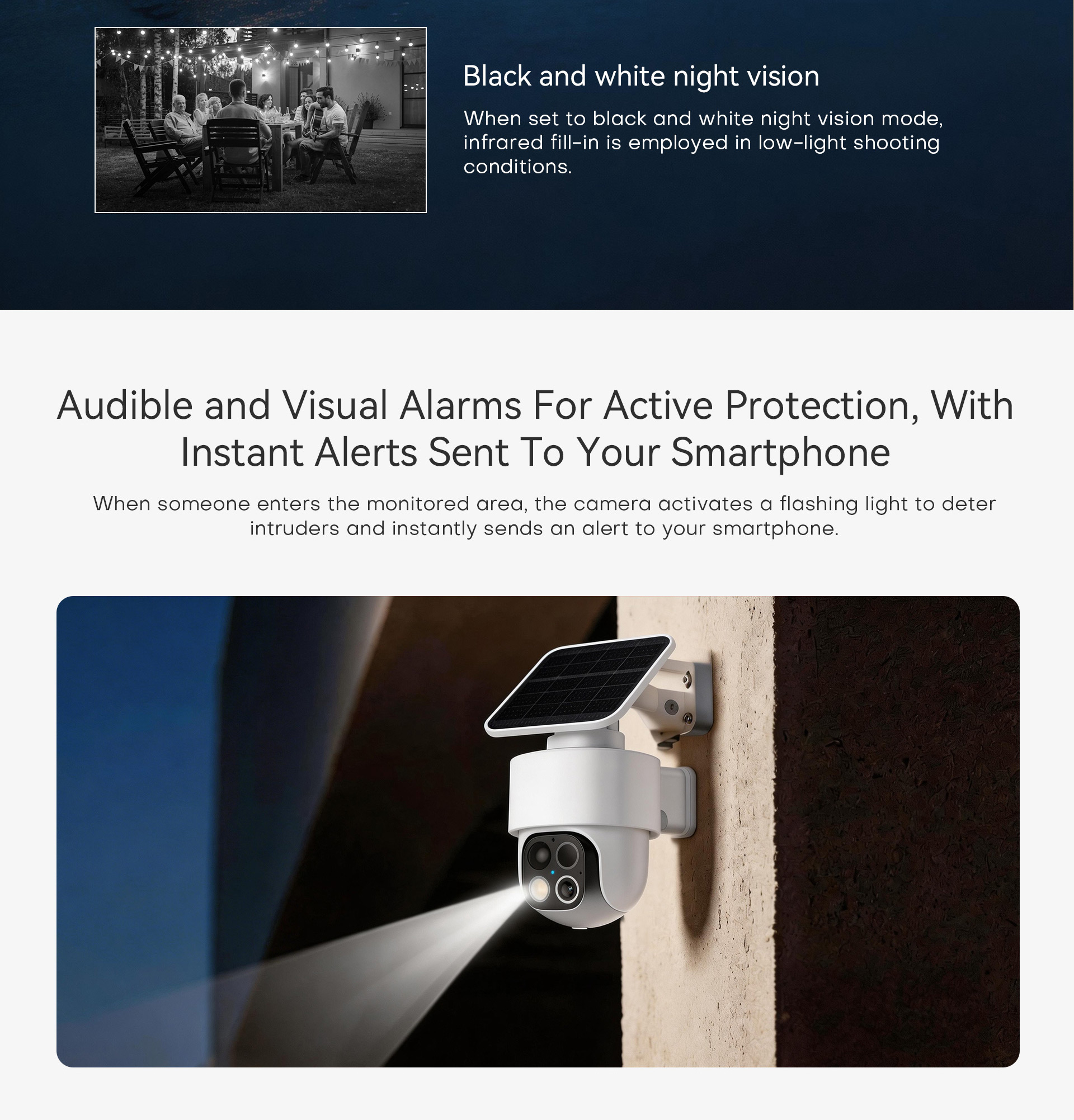

7: Supports PIR, siren and human detection;
8: Built-in 5200mAh rechargeable and non-removable lithium battery;
9: Equipped with a 2.25W detachable solar panel;
10: H.265 video compression technology;
11: Support DWDR, 3D noise reduction function;
12: Supports micro SD card slot, up to 256G;
13: Support cloud services(Subscribe);

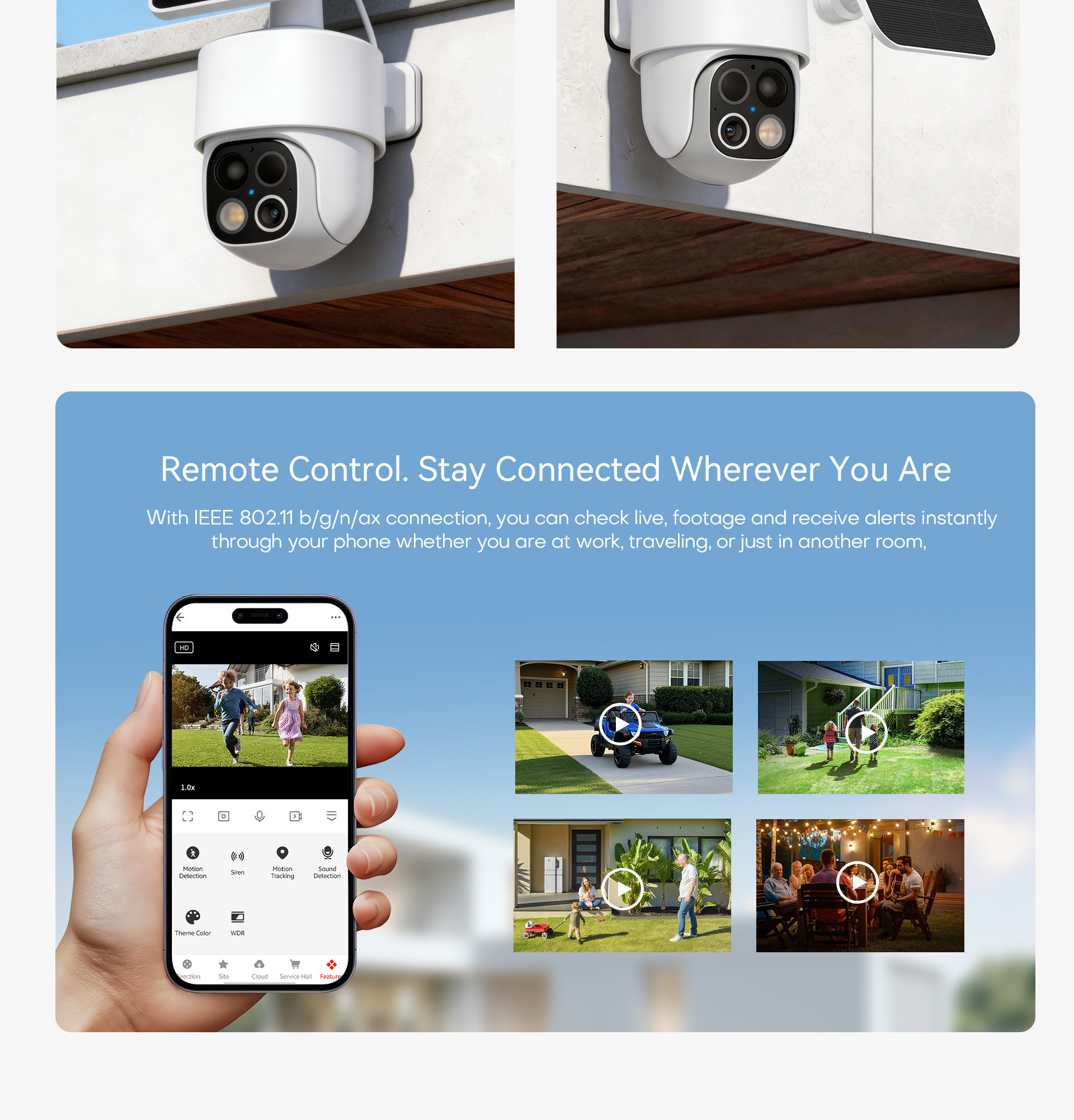

14: Support phone remote monitoring (iOS, Android);
15: Support third-party value-added services, optional(Alexa、Google).
Subassembly | Parameters | Specification |
CPU | Specification | T31 |
Image sensor | CMOS size | 1/2.8-inch CMOS |
Effetive pixel | 2560H x 1440V(4MP) | |
Lens | Model | LK96-6000 |
Focal length | 3.8mm | |
Relative aperture | F1.6 | |
Interface type | M12*P0.5 | |
FOV | 103° | |
Night vision | Image effect | Smart full-color mode |
Photosensitivity mode | Photodiodes | |
WIFI | Model | ATBM6461 |
Standard | IEEE 802.11 b/g/n/ax 2.4GHz WiFi 6 & BLE | |
Distance | 60-70m(No barriers) | |

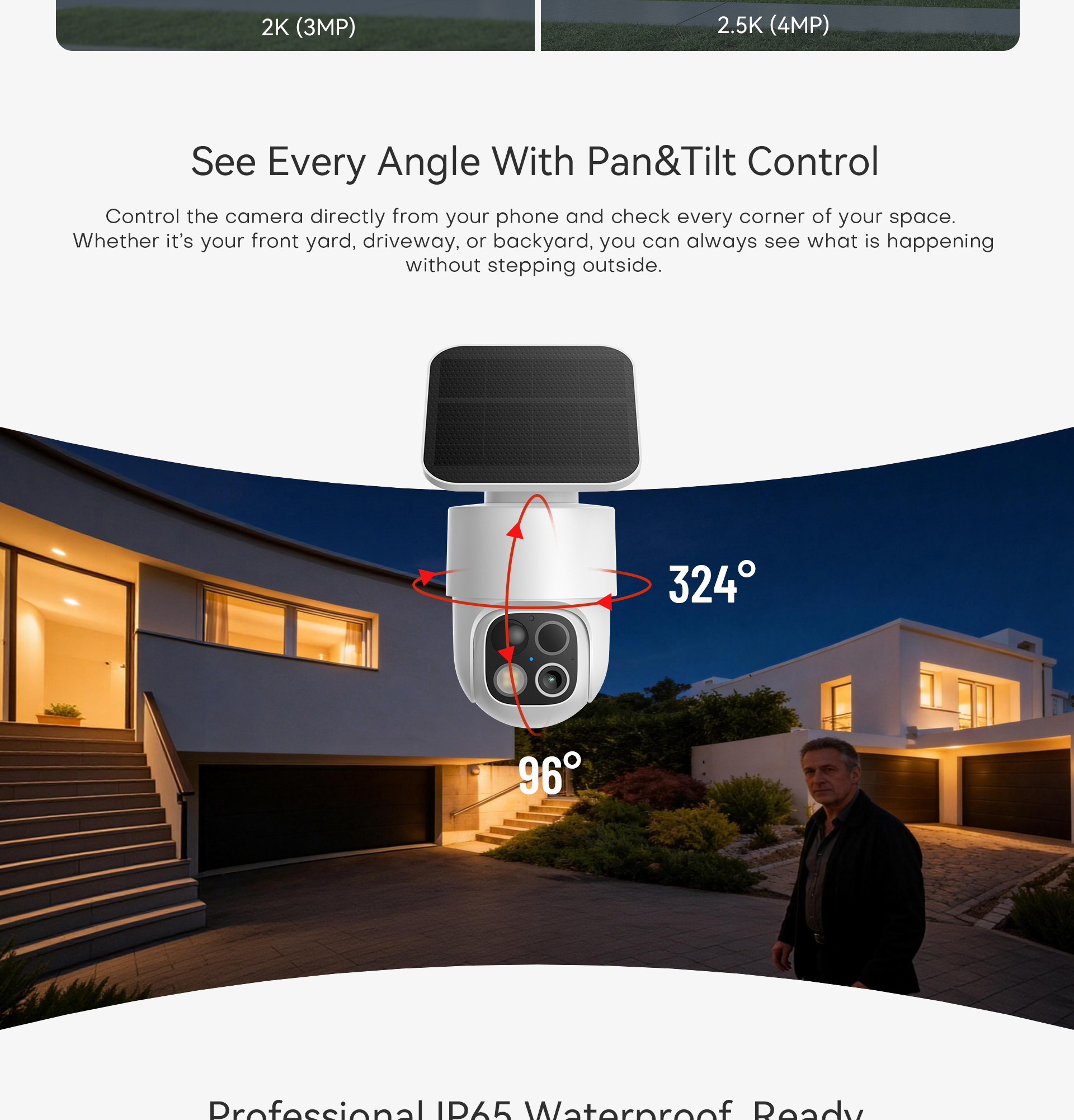

PTZ | Angle | Horizontal: 324°, Vertical: 96° |
SPK | SPK sensitivity | Support(1W,8Ω impedance,97±3dB) |
Microphone | Sensitivity | -36dB± 2dB |
SNR | ≥58dB | |
Storage mode | Cloud storage | Support |
Local storage | Up to 256G(SD cards are not included) | |
Interface | Micro SD card slot | Support(SD cards are not included) |
Reset button | Support | |
Power on/off switch | Support | |
Power interface | Type-C | |
Power supply | Battery | Built-in 5200mAh/3.7V rechargeable lithium battery |
Solar panel | Support, 2.25W solar panels | |
Adapter output | DC 5V/2A (Not included) | |
General | Working temperature | -10℃ ~ 50℃ |
Storage temperature | -20℃ ~ 60℃ | |
Working humidity | Less than 95%（Non-condensation） | |
Others | Installation mode | Wall-mounted |
Package list | Cablex1 User manual x1 Camera x1 Solar panel x1 Installation accessories package x1 |
