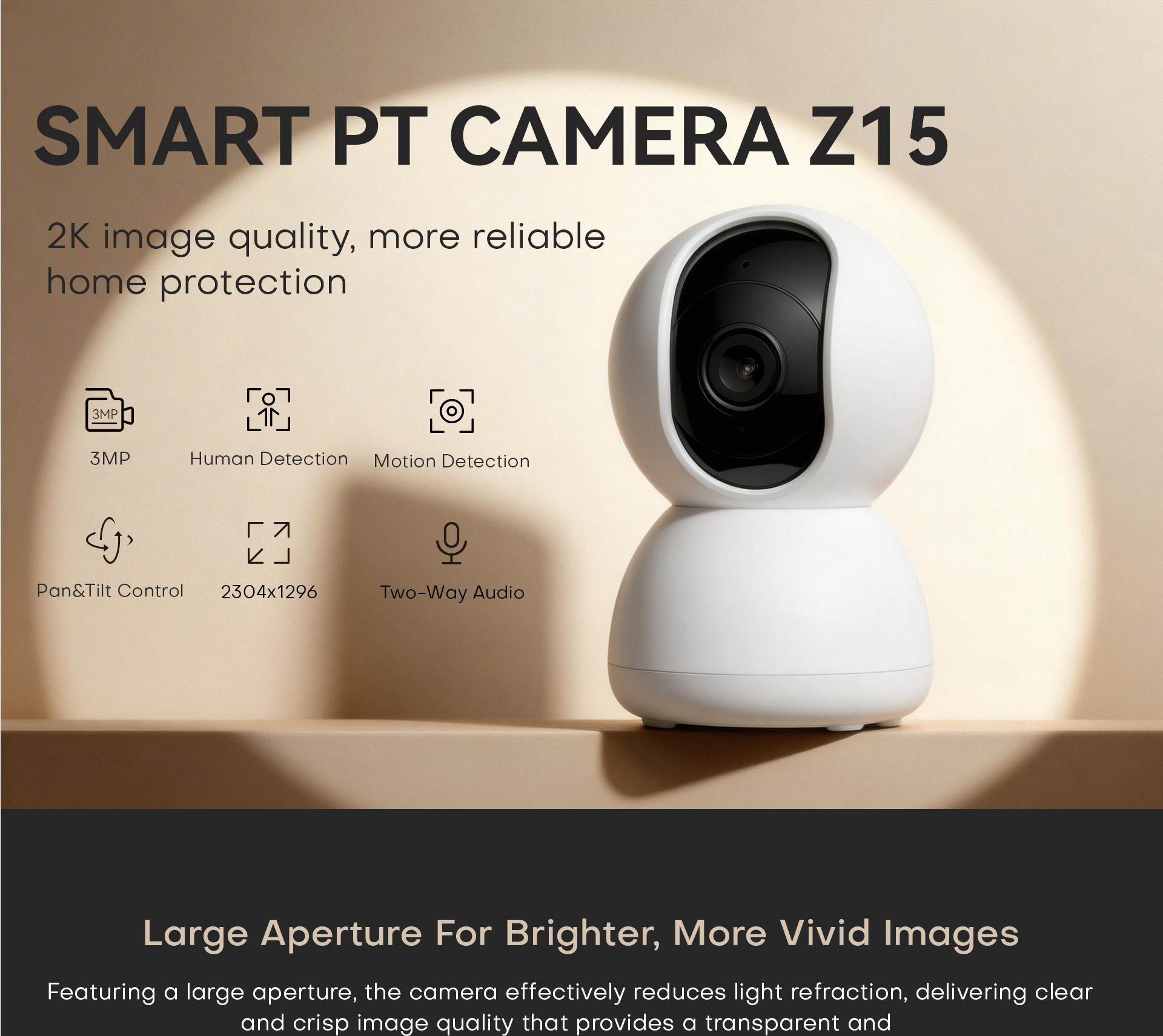

Z15 PT Camera
Product Overview：
1: 300W CMOS;
2: Full HD 3MP 2304*1296 resolution;
3: Fixed HD lens 4mm;
4: Support 2.4GHz & 5GHz WiFi;
5: 4 x 850nm IR LEDs, night vision distance up to 8-10M;
6: Supports motion detection;
7: H.265 video compression technology;
8: Support WDR, 3D noise reduction function;
9: Supports micro SD card slot, up to 256G;
10: Support cloud services(Subscribe);
11: Support phone remote monitoring (iOS, Android);
12: Support third-party value-added services, optional(Alexa、Google).
Subassembly | Parameters | Specification |
CPU | Specification | AK3918AV130L |
Image sensor | CMOS size | 300W CMOS |
Effetive pixel | 2304H x 1296V(3MP) | |
Lens | Model | H0418 |
Focal length | 4mm | |
Relative aperture | F2.0 | |
Interface type | M12*P0.5 | |
FOV | 91° | |
Night vision | Image effect | Night distance vision 8-10M |
WIFI | Model | ATBM6012C |
Standard | IEEE 802.11 b/g/n/ac 2.4GHz & 5GHz | |
Distance | 50m(No barriers) | |
SPK | SPK sensitivity | Support(1W,8Ω impedance,97±3dB) |
Microphone | Sensitivity | -36dB± 2dB |
SNR | ≥58dB | |
Storage mode | Cloud storage | Support(Subscribe) |
Local storage | Up to 256G(SD cards are not included) | |
Interface | Micro SD card slot | Support(SD cards are not included) |
Reset button | Support | |
Power interface | USB | |
Ethernet interface | N/A | |
Power adapter | Output | DC 5V/1A |
Interface | USB | |
General | Working temperature | -10℃~ 50℃ |
Storage temperature | -20℃~ 60℃ | |
Working humidity | Less than 95%（Non-condensation） | |
Others | Installation mode | Ceiling-mounted installation |
Package list | Power adapter x1 Camera with cable x1 User manual x1 Installation accessories package x1 |
